Removal And Installation: Notes

<M/T>

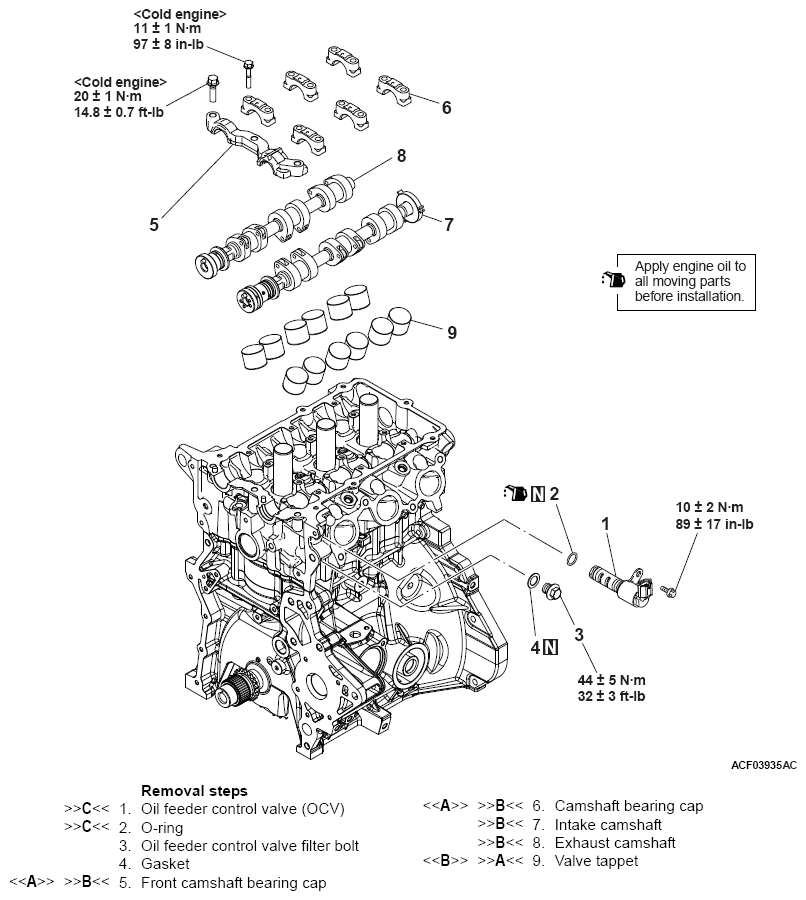

Fig 1: Removing/Installing Camshaft Components Location With Torque Specification (M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<CVT>

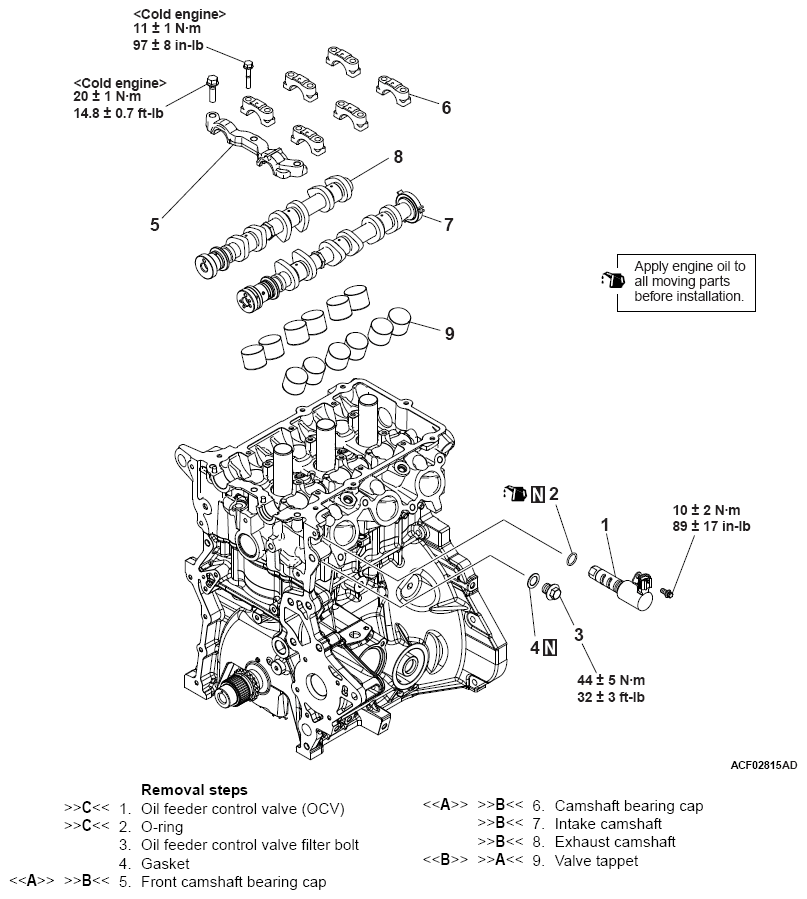

Fig 2: Removing/Installing Camshaft Components Location With Torque Specification (CVT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
