Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.

Post-installation operation  Shift lock mechanism check (Refer to SHIFT LOCK MECHANISM CHECK  .) Selector lever operation check (Refer to SELECTOR LEVER OPERATION CHECK  .)

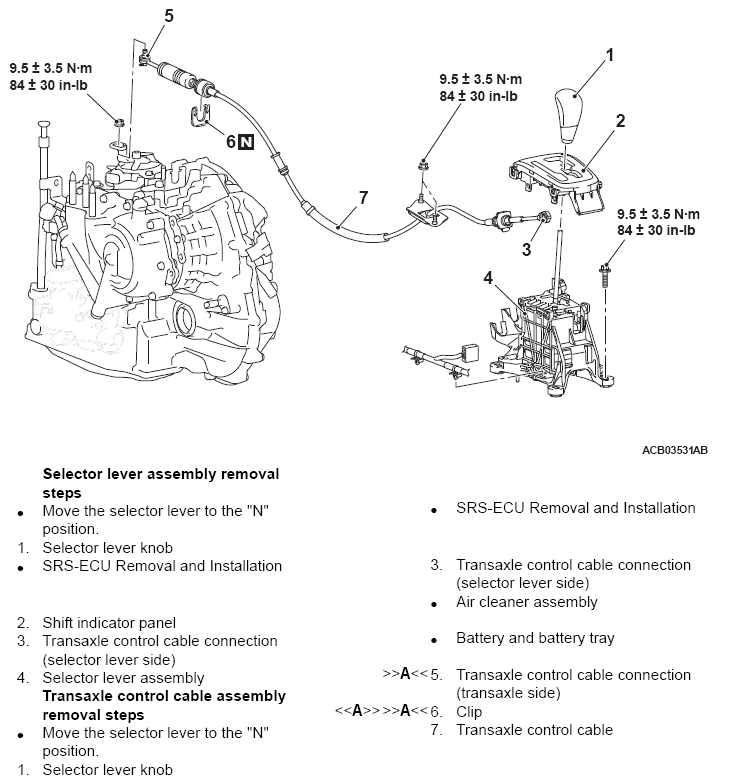

Fig 1: Removing/Installing Transaxle Control Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
