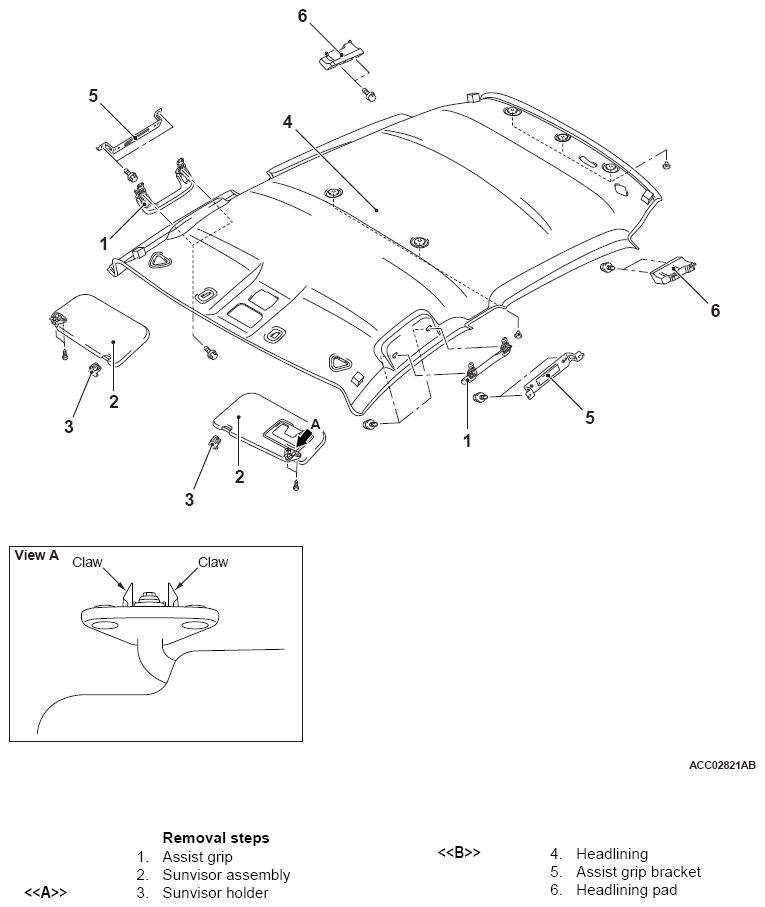

Removal And Installation: Notes

Pre-removal and Post-installation Operation  Removal and Installation of Front Pillar Trim, Upper center Pillar Trim, Rear Pillar Trim (Refer to TRIMS  ). Removal and Installation of Rear Seatbelt Outer Assembly (RH or LH) (Refer to REAR SEAT BELT  ). Removal and Installation of Dome Light Assembly (Refer to DOME LIGHT REMOVAL AND INSTALLATION ). Removal and Installation of Passenger's Air Bag Cut OFF Indicator Light Assembly (Refer to PASSENGER'S AIR BAG ON/OFF INDICATOR LIGHT ).

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
