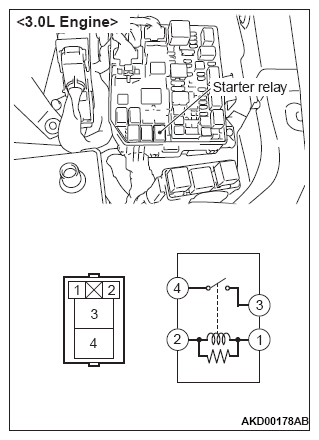

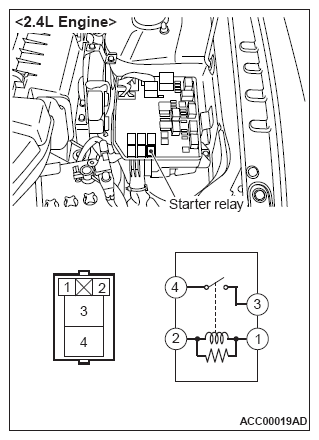

Starter Relay Check

Battery voltage	Terminal number to be connected to tester	Continuity test results
Not applied	3 - 4	Open circuit
Connect terminal 2 to battery (+) terminal. Connect terminal 1 to battery (-) terminal.	3 - 4	Continuity (less than 2 ohms)
