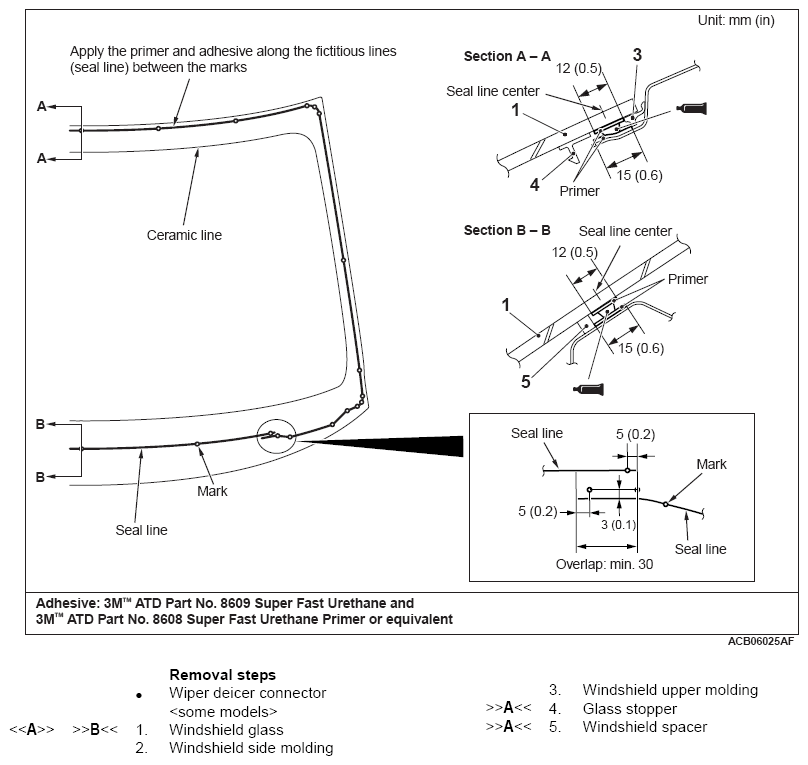

Removal And Installation

Pre-removal and post-installation operation

Front deck garnish removal and installation (Refer to Windshield Wiper WINDSHIELD WIPER .)
Roof drip molding removal and installation (Refer to Molding ADHESIVE .)
Front pillar trim removal and installation (Refer to Interior Trim TRIMS .)
Inside rear view mirror assembly removal and installation (Refer to Inside Rear View Mirror REMOVAL AND INSTALLATION <VEHICLES WITH AUTOMATIC ANTI-DAZZLING MIRROR> .)
Lighting control sensor removal and installation <Vehicles with lighting control sensor> (Refer to Lighting Control Sensor LIGHTING CONTROL SENSOR .)
FCM/LDW/AHB-ECU Removal and Installation <Vehicles with FCM/LDW/AHB-ECU> (Refer to FCM/LDW/AHB-ECU FCM/LDW/AHB-ECU .)
