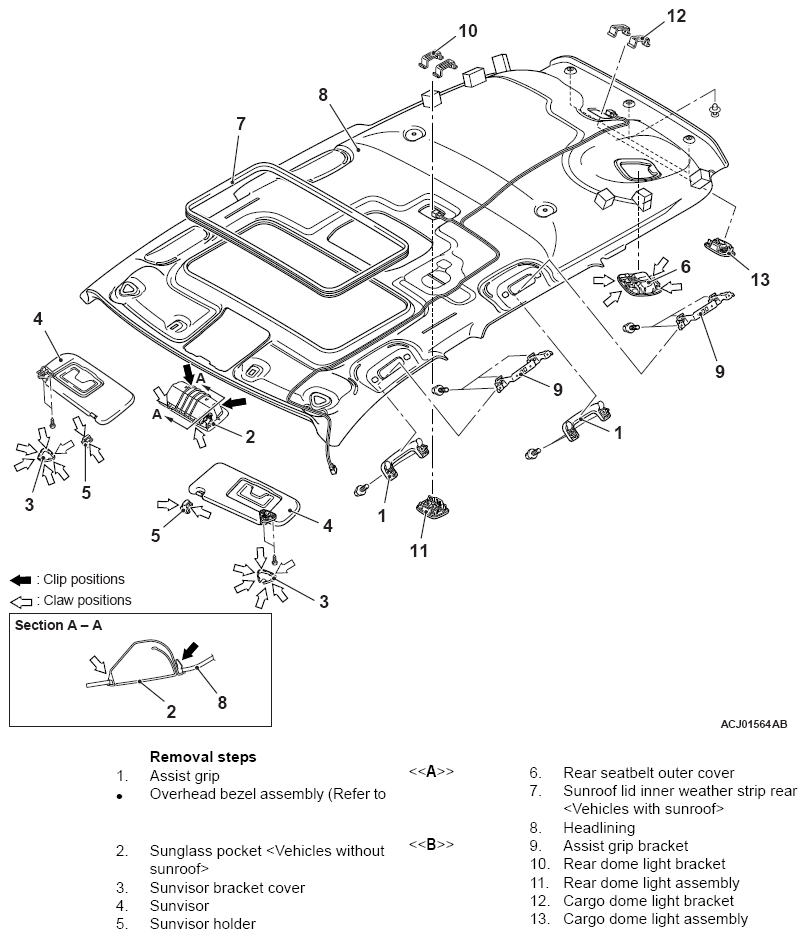

Removal And Installation: Notes
CAUTION:
For the removal of the headlining, refer to
Service Precautions (Refer to SERVICE PRECAUTIONS
) and Curtain Air Bag Module (Refer to CURTAIN AIR BAG MODULE(S)
).
Pre-removal and Post-installation Operation
- Front Pillar Trim, Rear Scuff Plate, Front Scuff Plate, Cowl Side Trim, Upper Center Pillar Trim, Lower Center Pillar Trim, Front Door Opening Trim, Rear Door Opening Trim, Quarter Trim Lower, Quarter Trim Upper, Rear End Trim, Rear Pillar Trim Removal and Installation (Refer to TRIMS ).
- Front Door Assembly (RH) Removal and Installation (Refer to DOOR ASSEMBLY ).
- Instrument Panel Assembly Removal and Installation (Refer to TRIMS ).
- Front Seat Assembly Removal and Installation (Refer to SEAT ASSEMBLY ).
- Front Floor Console Assembly Removal and Installation (Refer to FRONT FLOOR CONSOLE ASSEMBLY ).
- Center Flame Assembly Removal and Installation (Refer to HEATER UNIT AND BLOWER ASSEMBLY ).
- Front Deck Crossmember Removal and Installation (Refer to HEATER UNIT AND BLOWER ASSEMBLY ).
