Removal And Installation: Notes

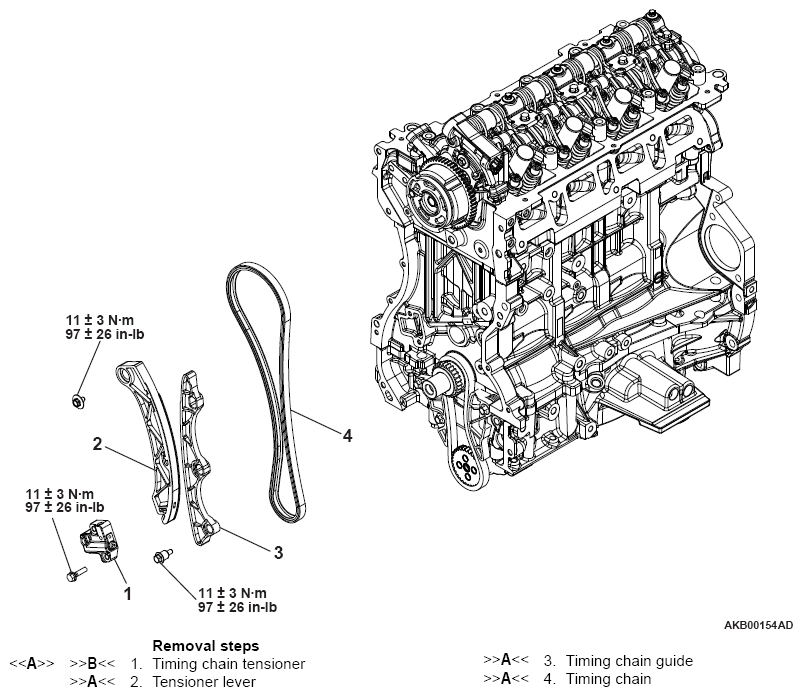

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992854: Magnet Base Plate
• MD998913: Dial Gauge Extension
