Steering Wheel Camera Switch Check
›
Notes
Steering Wheel Camera Switch Check: Notes

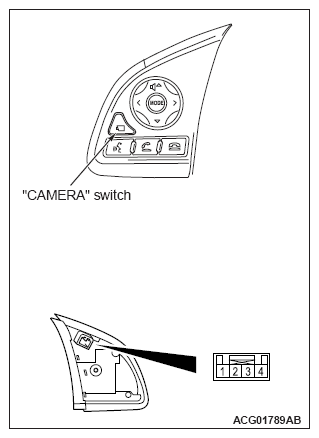

Switch Position
Tester Connection
Resistance
"CAMERA" switch pushed
1 - 2
Approximately 13.0 KΩ
