Removal And Installation: Notes

CAUTION:

• When you remove/install or replace the camera, you should check the camera image on the multi around monitor "Bird-eye view." If necessary, calibrate the monitor (Refer to HOW TO CALIBRATE MULTI AROUND MONITOR ). <Vehicles with multi around monitor>
• To ensure the camera image is clearly visible, wipe the lens with a damped rag and then a dry rag to remove dust, rain drops or snow.
• Be careful not to damage the camera. Any damage may have an adverse effect on the screen image.

Pre-removal and Post-installation Operation  Front Door Sash Trim Removal and Installation (Refer to DOOR TRIM .) Front Door Trim Removal and Installation (Refer to DOOR TRIM .) Door Mirror Assembly Connector Connection

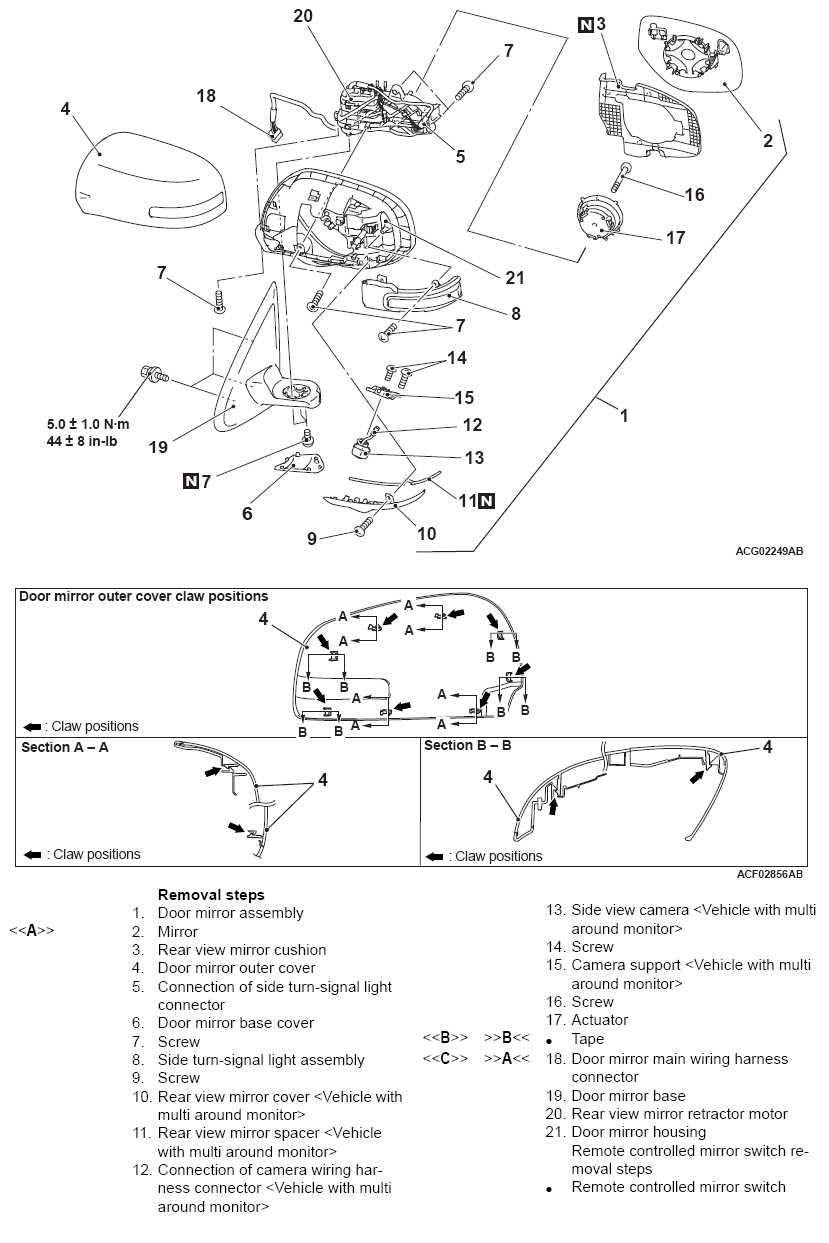

Fig 1: Removing/Installing Outside Mirror Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
