Dash Panel

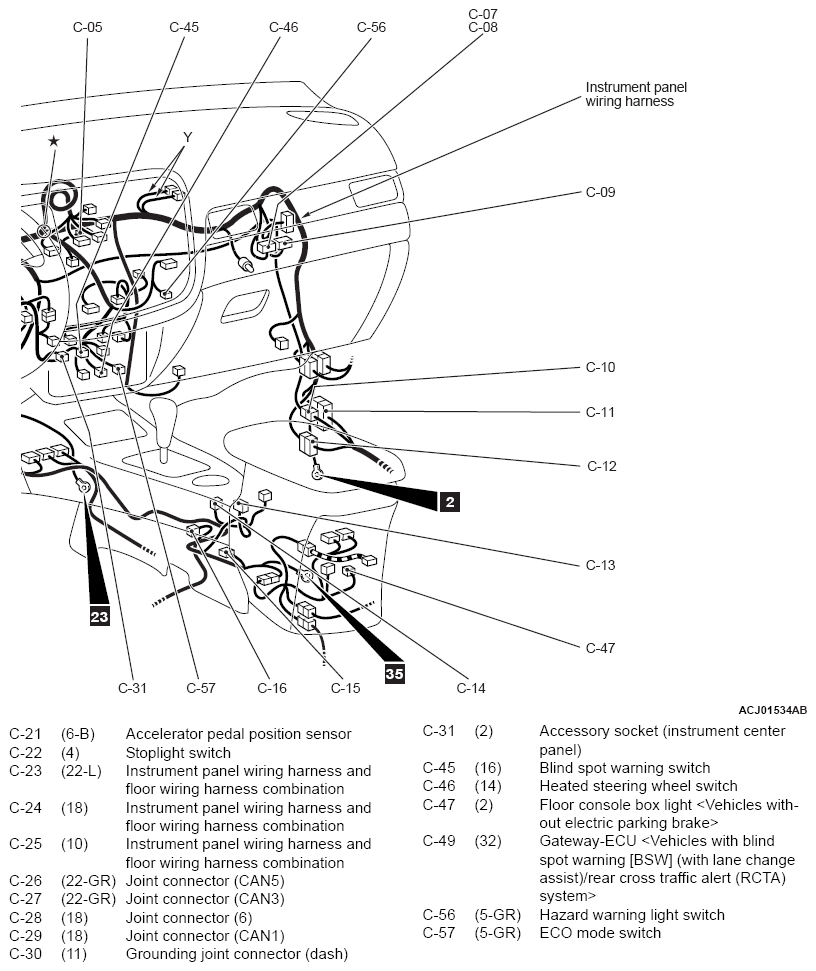

G13502252Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

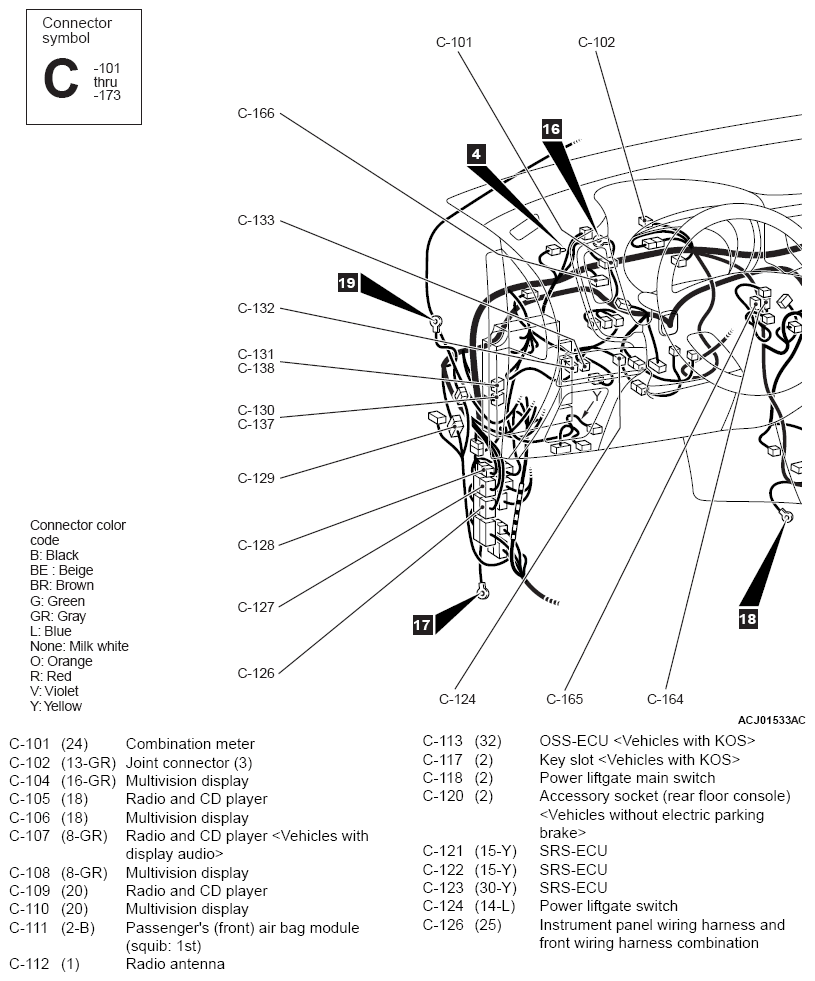

G13502253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

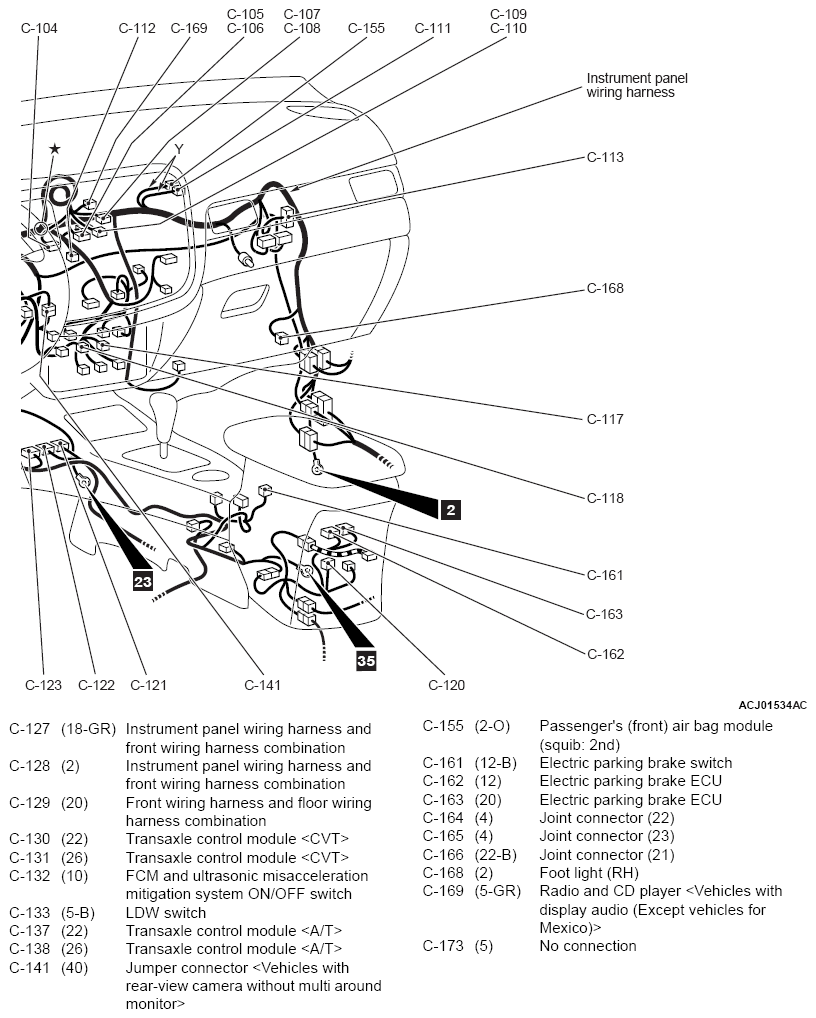

G13502254Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

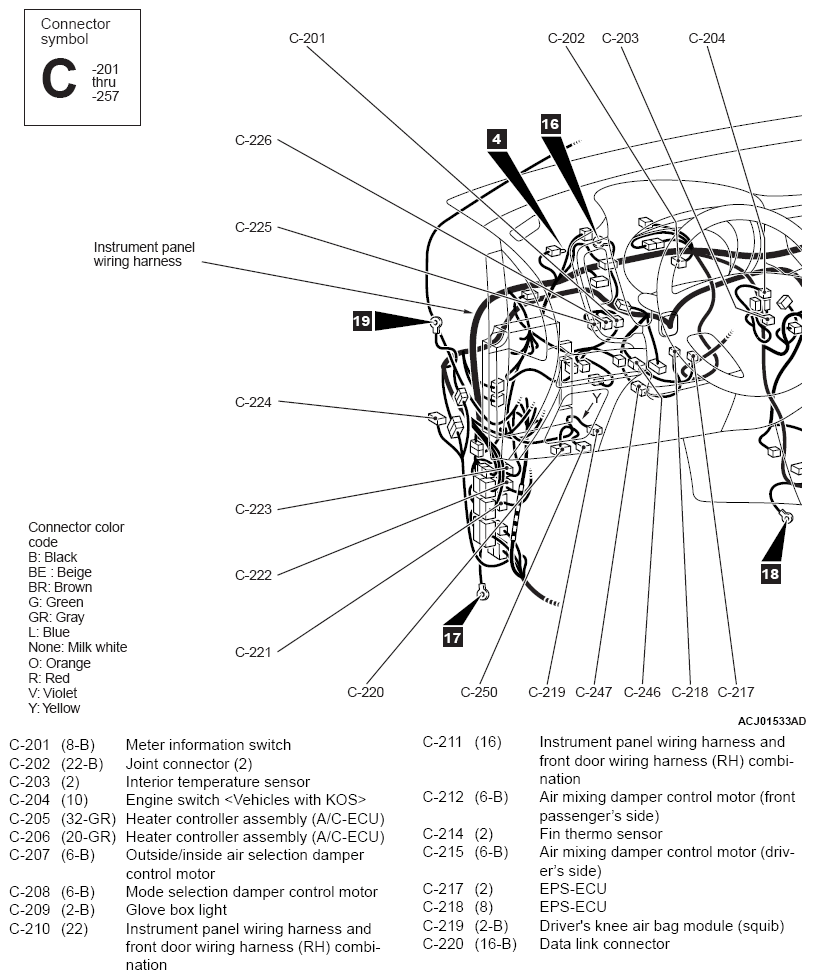

G13502255Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

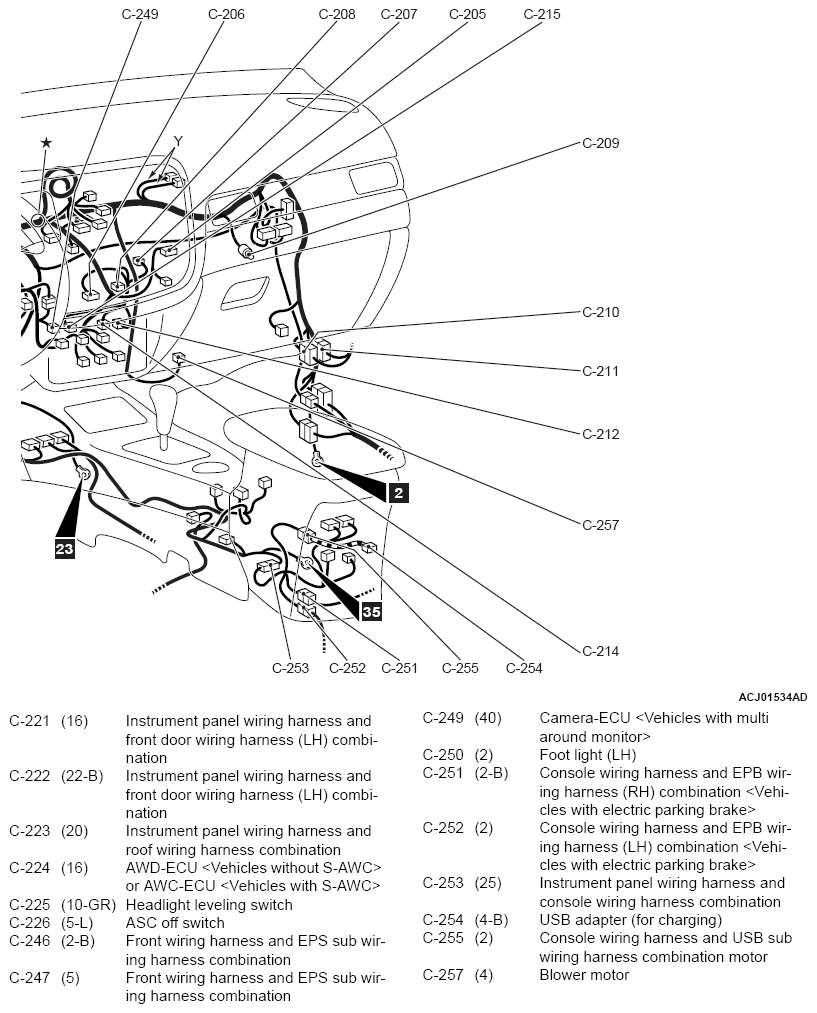

G13502256Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

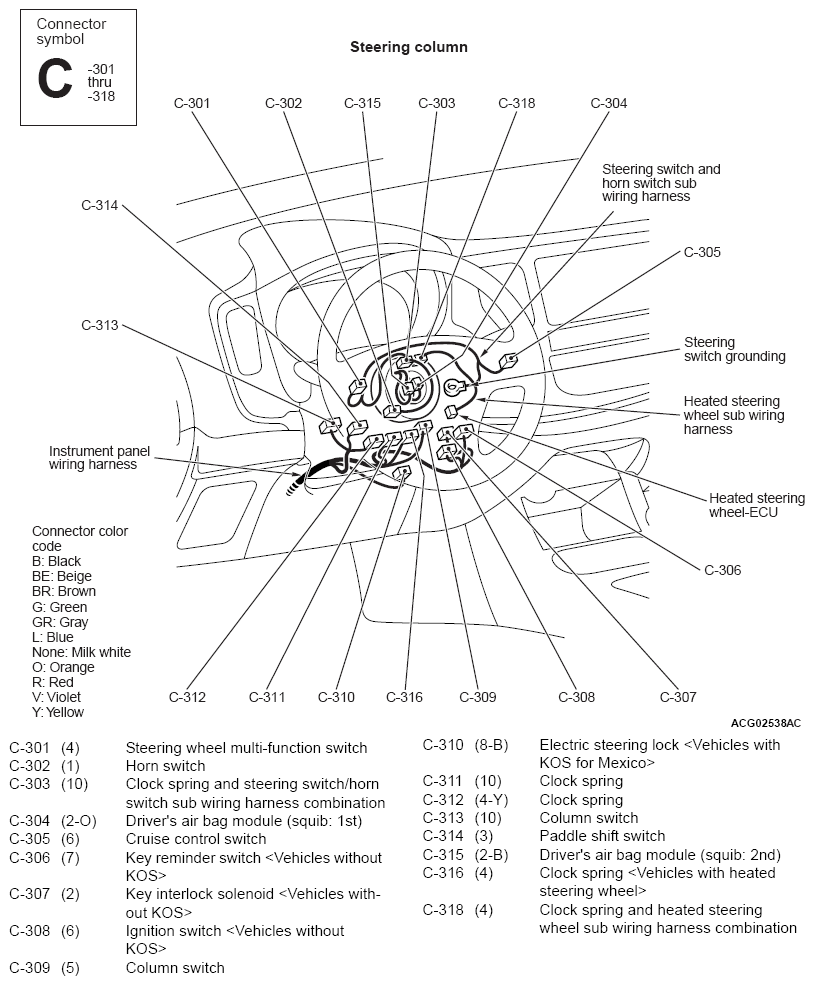

G13502257Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

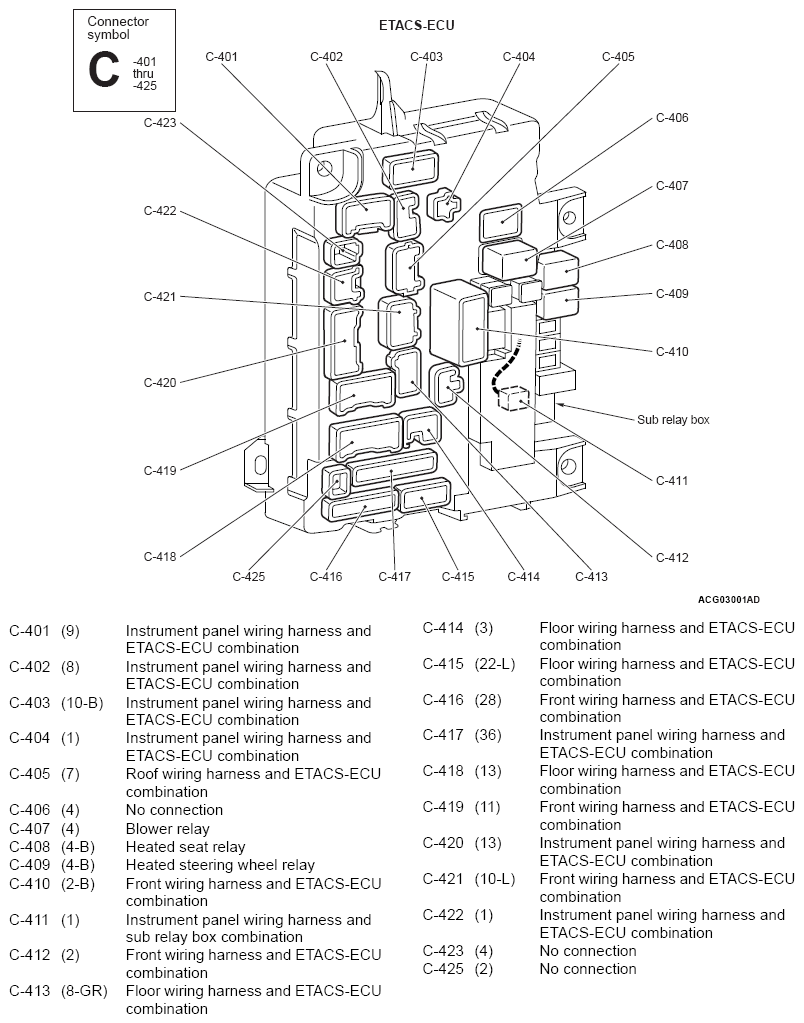

G13502258Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

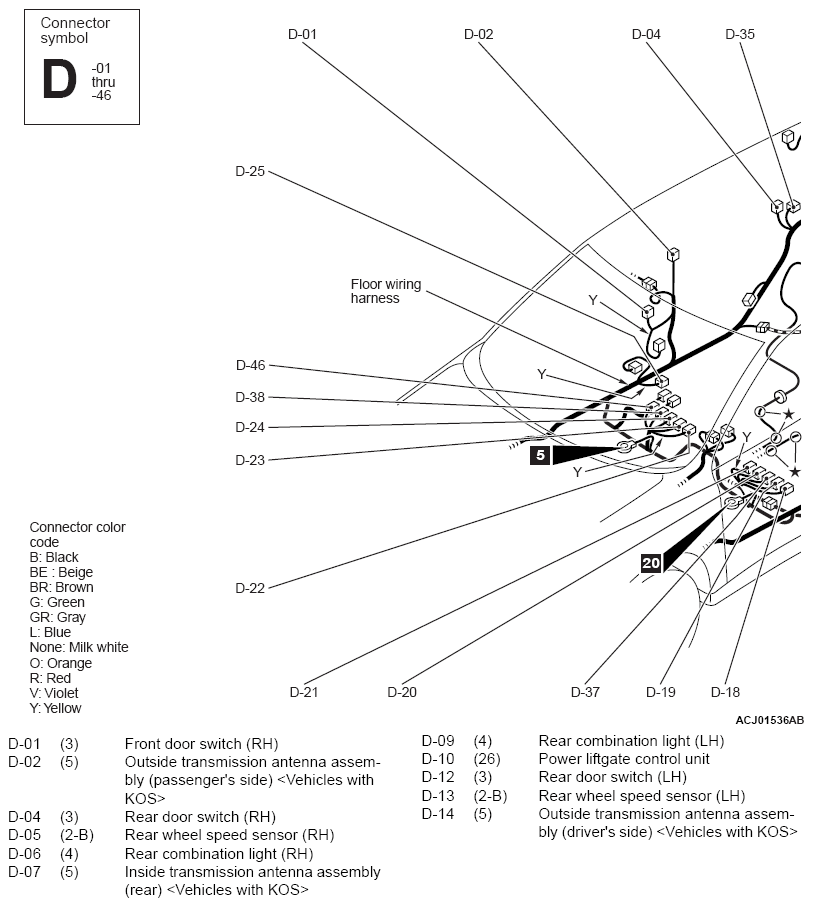

G13502259Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
