Removal And Installation: Overview

Pre-removal and Post-installation Operation  Instrument Panel Lower Center Removal and Installation (Refer to INSTRUMENT PANEL ASSEMBLY  ).

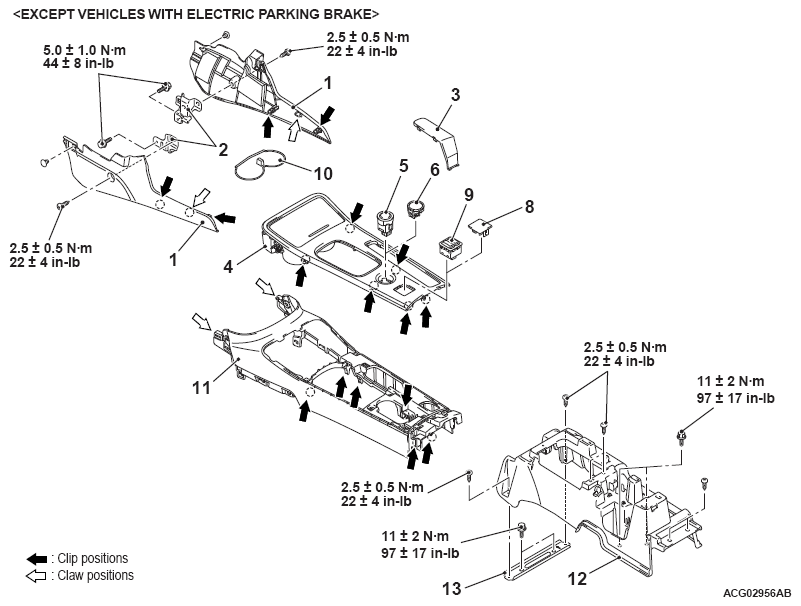

Fig 1: Removing/Installing Front Floor Console Assembly Components Location With Torque Specification (Except Vehicles With Electric Parking Brake)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

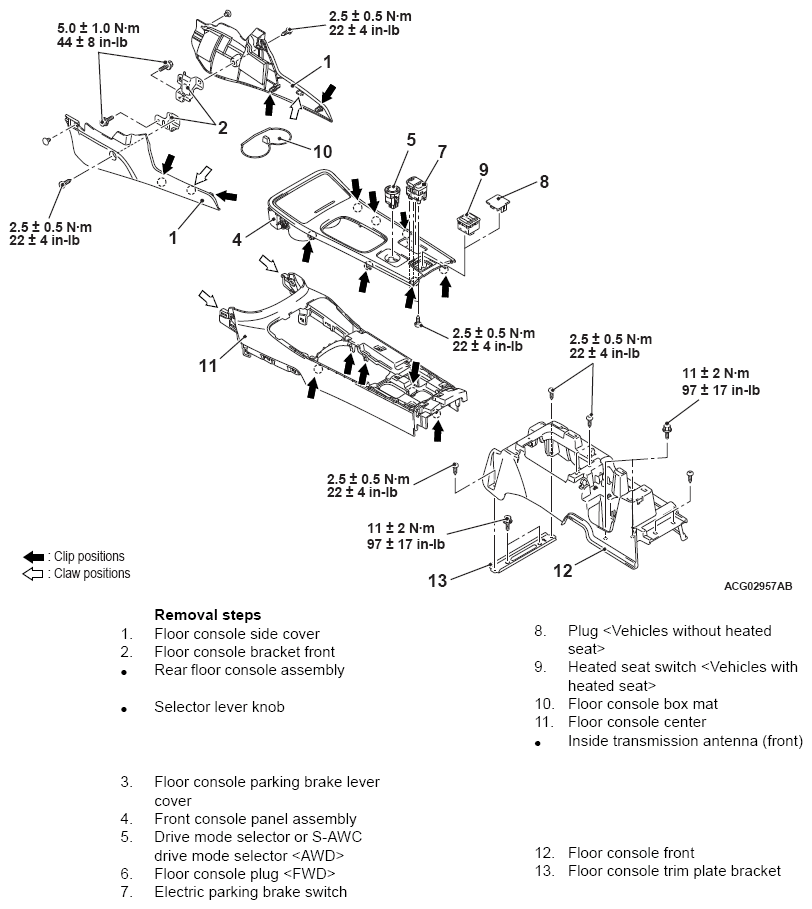

Fig 2: Removing/Installing Front Floor Console Assembly Components Location With Torque Specification (Vehicles With Electric Parking Brake)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
