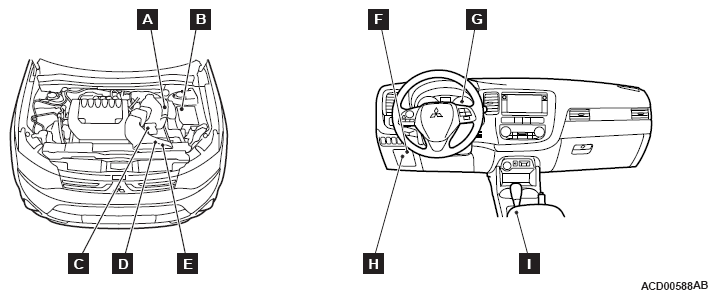

A/T Control Component Layout

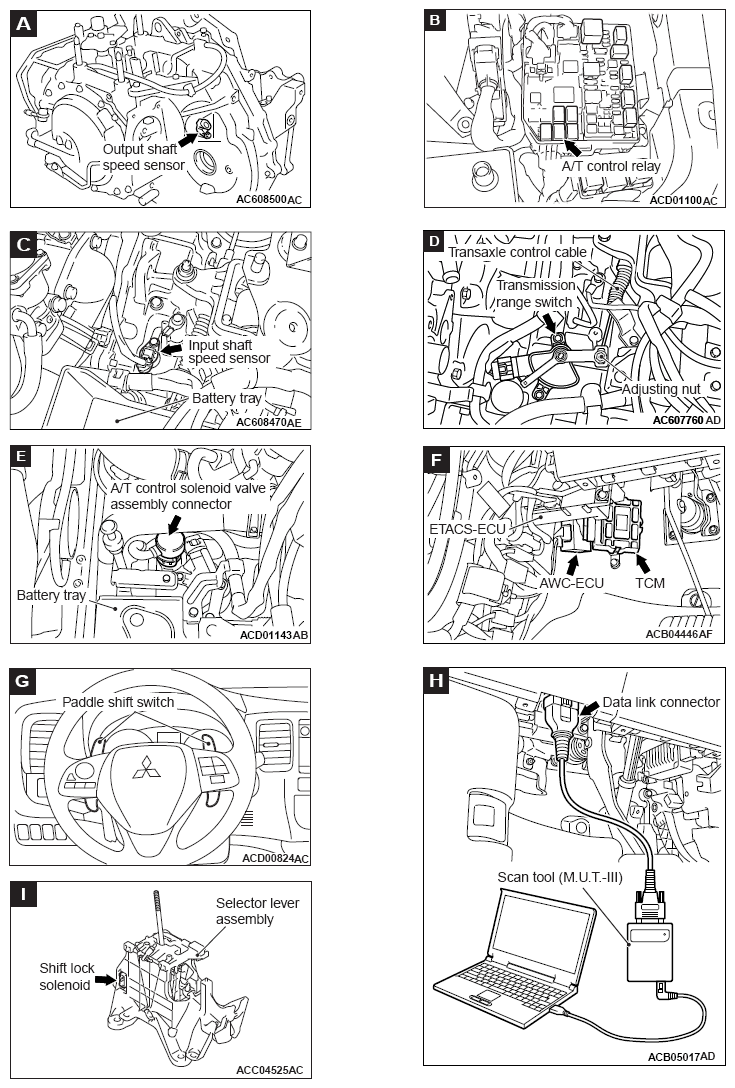

Name	Symbol	Name	Symbol
A/T control relay	B	Output shaft speed sensor	A
A/T control solenoid valve assembly connector	E	Paddle shift switch	G
AWC-ECU <Vehicles with S-AWC>	F	Selector lever assembly (incorporating shift lock solenoid)	I
Data link connector	H	Transaxle control module (TCM)	F
Input shaft speed sensor	C	Transmission range switch	D

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

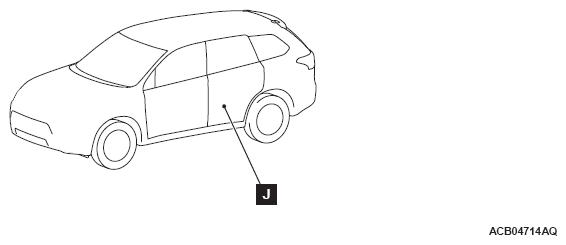

Name	Symbol

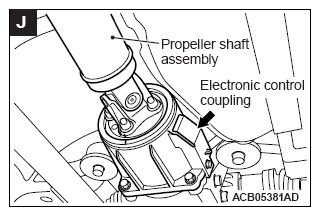

Electronic control coupling <Vehicles with S-AWC>	J

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
