Removal And Installation: Notes

Pre-removal operation

Post-installation operation

Driveshaft Installation (Refer to DRIVESHAFT ASSEMBLY ).
ECM installation (Refer to ENGINE CONTROL MODULE ).
Battery and battery tray installation.
Air Cleaner Assembly Installation (Refer to REMOVAL AND INSTALLATION <3.0L ENGINE> ).
Engine Coolant Refilling (Refer to ENGINE COOLANT REPLACEMENT <3.0 L ENGINE> ).
Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE ).
Engine Room Under Cover A and Side Cover Installation.

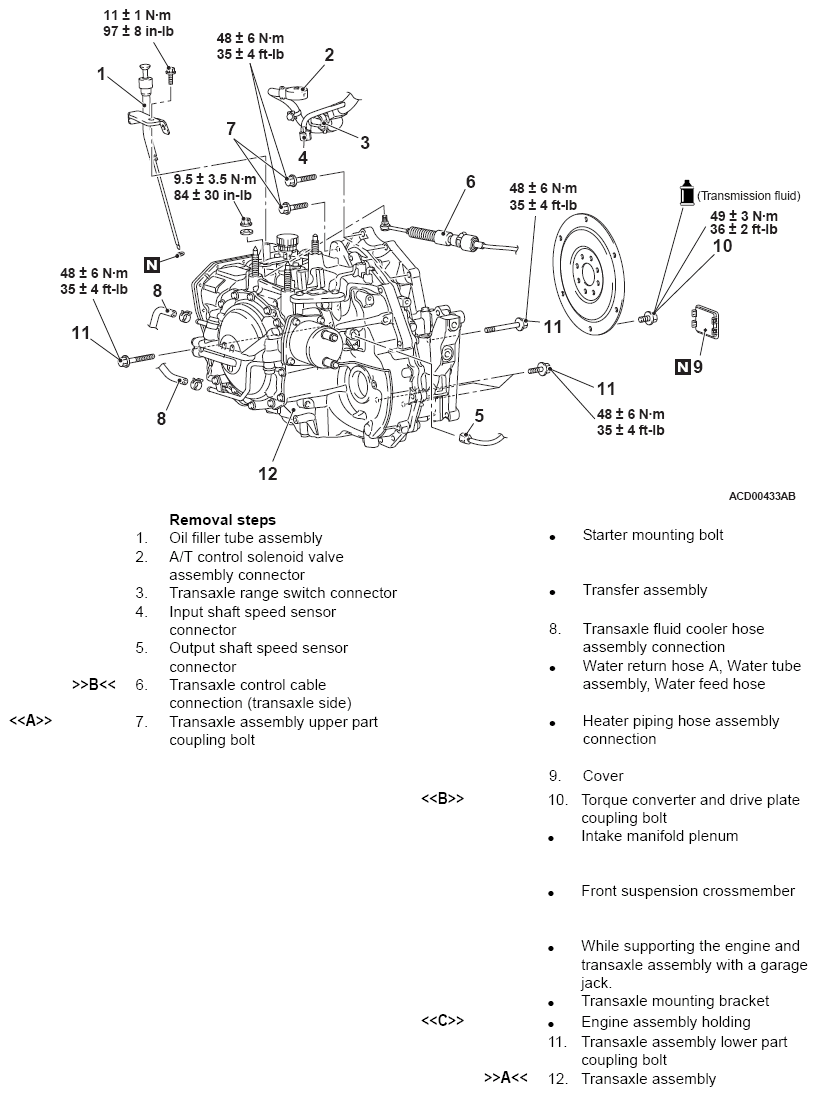

Fig 1: Removing/Installing Transaxle Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
