Removal And Installation: Notes

CAUTION:

• Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and Side Airbag Module(s) SIDE-AIRBAG MODULE(S) .
• Before removing the front seat assembly, refer to OCCUPANT CLASSIFICATION-ECU , Occupant Classification Sensor OCCUPANT CLASSIFICATION SENSOR .

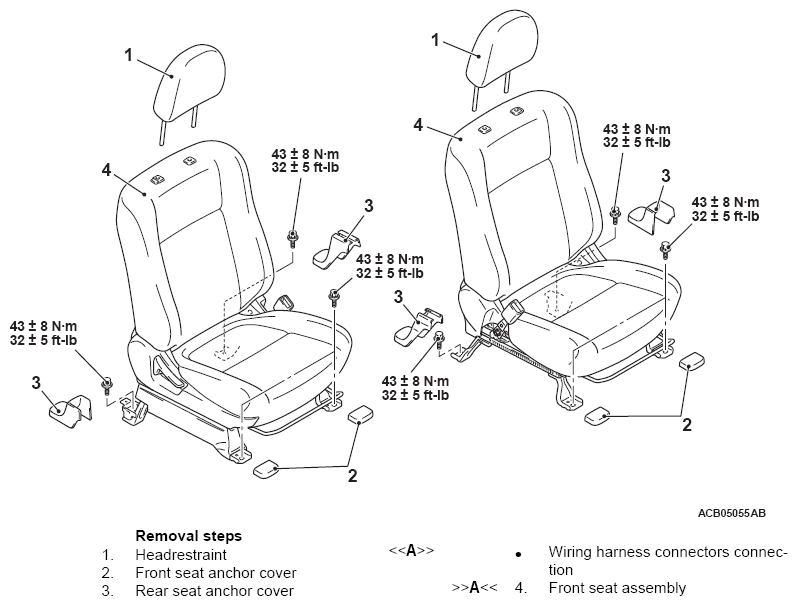

Fig 1: Removing/Installing Front Seat Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

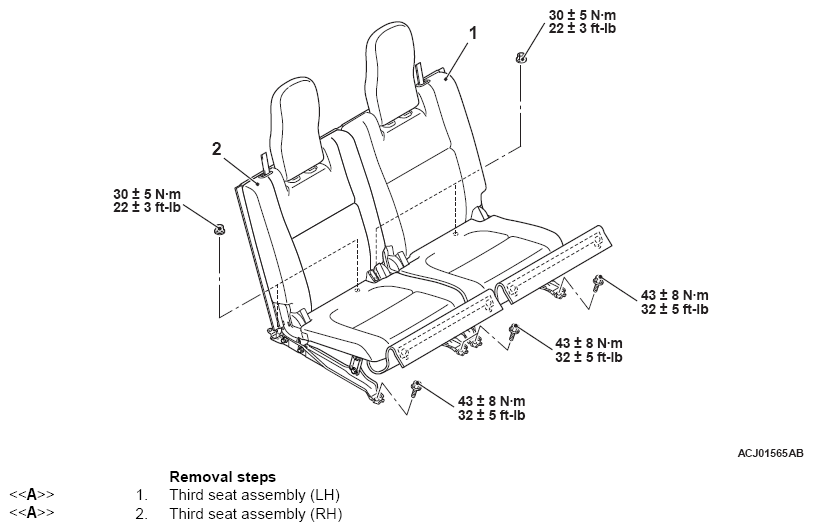

Fig 1: Removing/Installing Third Seat Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
