Mirage ES, Automatic CVT Trans
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Seat Assembly
›
Front Seat Assembly
›
Inspection
›
Disassembly And Reassembly
Disassembly And Reassembly

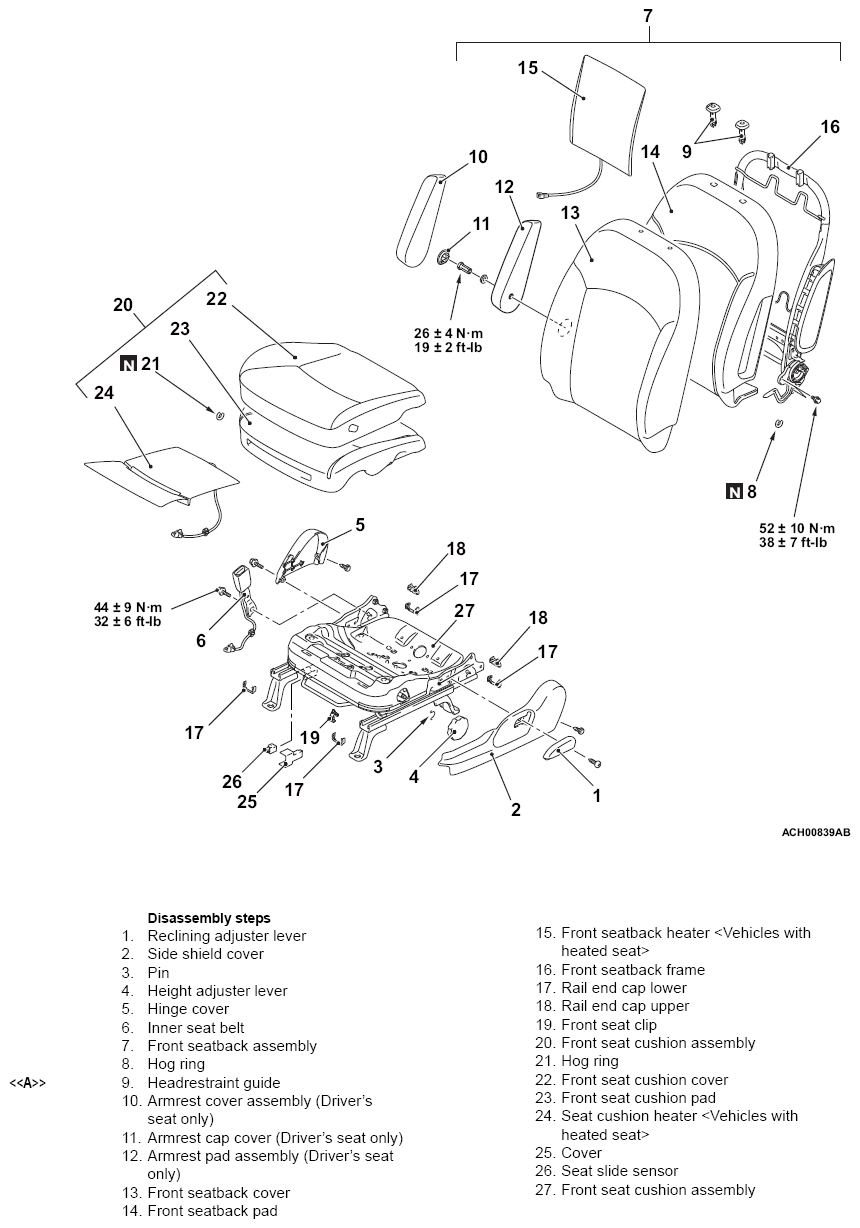

Fig 1: Disassembling/Assembling Front Seat Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
