Removal And Installation: Notes

Pre-removal operation Post-installation operation

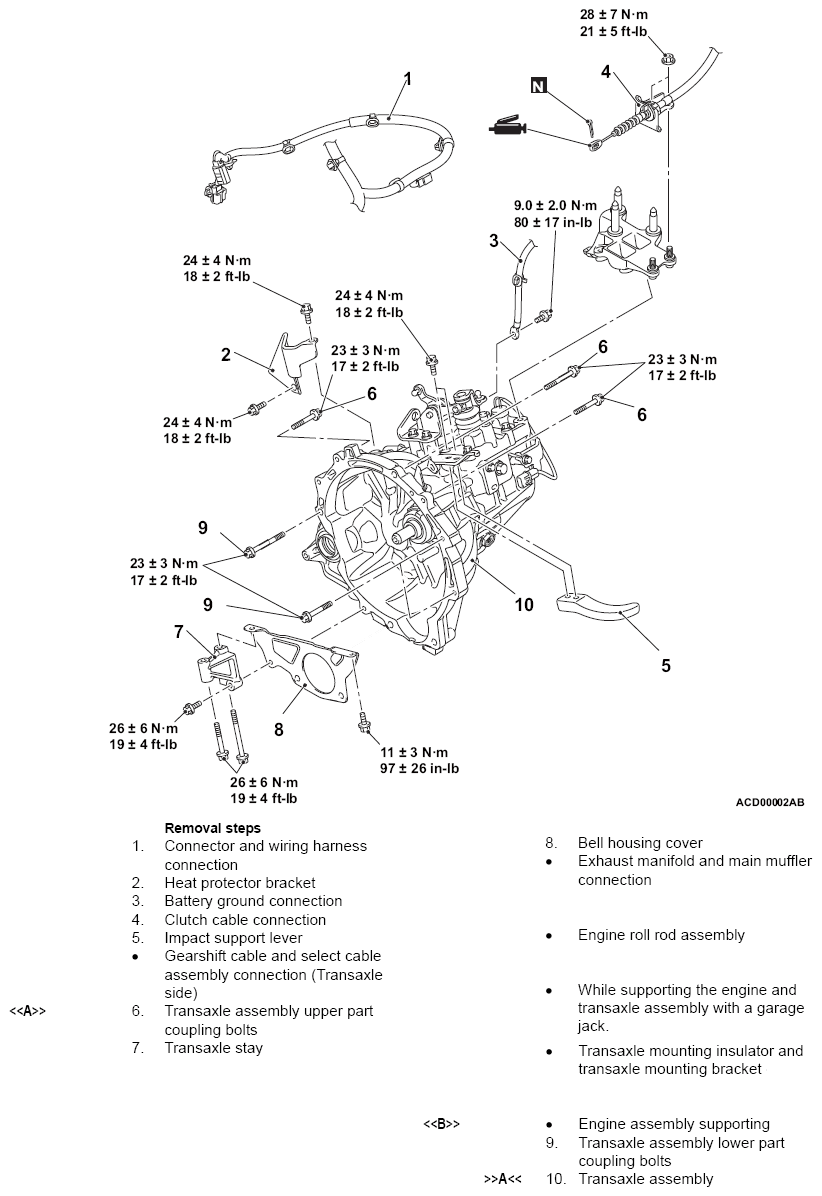

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specifications
G13734363Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
