Mirage G4 ES, Standard Trans
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Seat Assembly
›
Front Seat Assembly
›
Disassembly And Reassembly
›
Notes
Disassembly And Reassembly: Notes

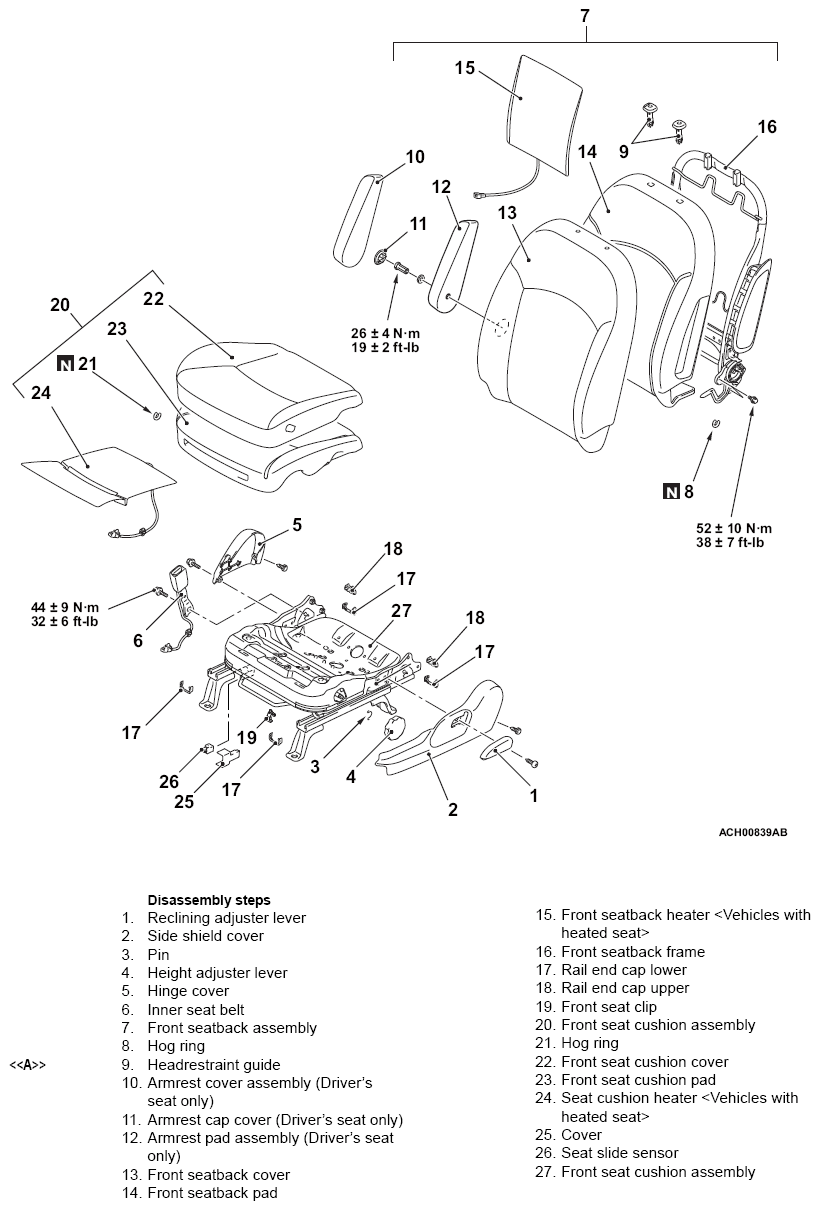

Fig 1: Disassembling/Assembling Front Seat Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
