Notes
Disassembly And Reassembly: Notes

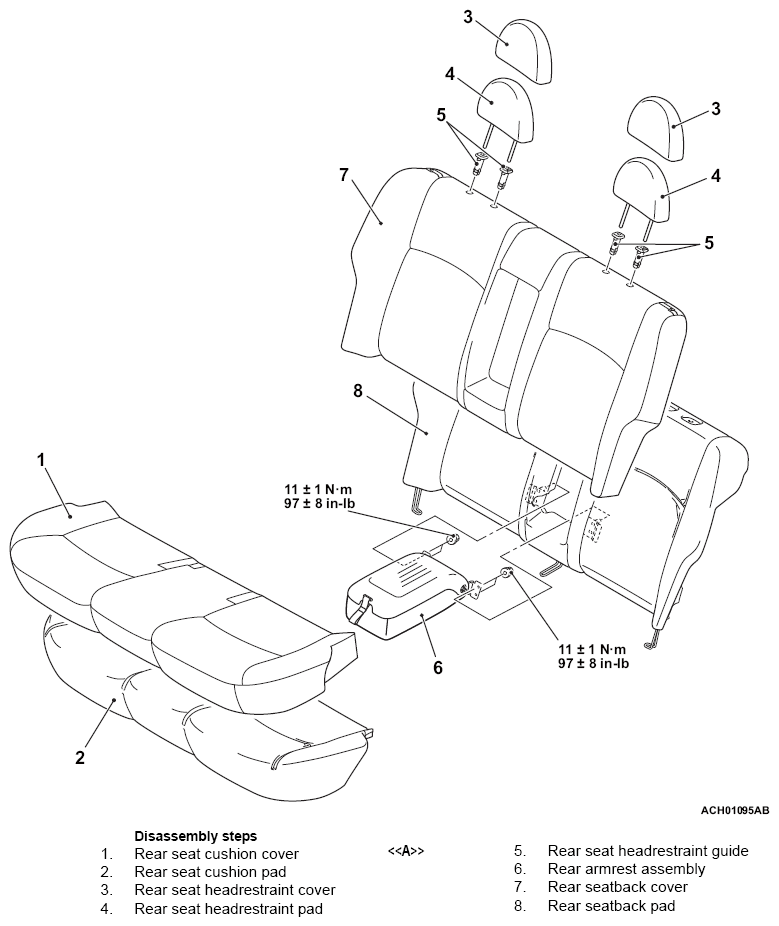

Fig 1: Disassembling/Assembling Rear Seat Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
