Removal And Installation: Notes

Pre-removal operation  Removal of Steering wheel assembly (Refer to REMOVAL AND INSTALLATION .) Removal of Steering column lower cover and steering column upper cover (Refer to REMOVAL AND INSTALLATION .) Removal of Column switch body (Refer to REMOVAL AND INSTALLATION ) Removal of Instrument panel cover lower (Refer to REMOVAL AND INSTALLATION .)

Post-installation operation  Installation of Instrument panel cover lower (Refer to REMOVAL AND INSTALLATION .) Removal of Column switch body (Refer to REMOVAL AND INSTALLATION .) Installation of Steering column lower cover and steering column upper cover (Refer to REMOVAL AND INSTALLATION .) Removal of Steering wheel assembly (Refer to REMOVAL AND INSTALLATION .)

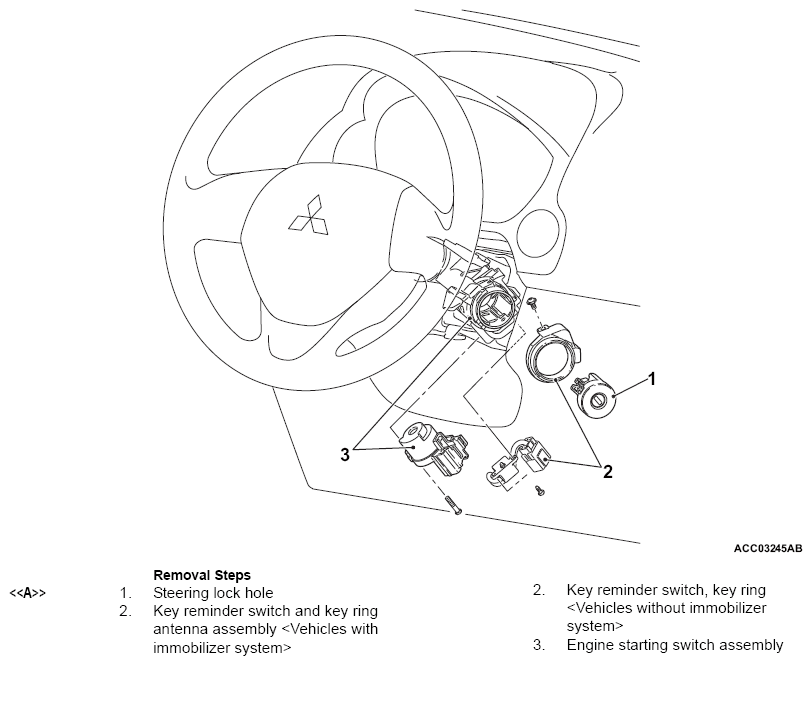

Fig 1: Ignition Switch Removal Sequence

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
