Notes
Disassembly And Assembly: Notes
CAUTION:
As for the EBJ or VUJ assembly, only the EBJ or VUJ boot can be replaceable, and other parts cannot be disassembled.

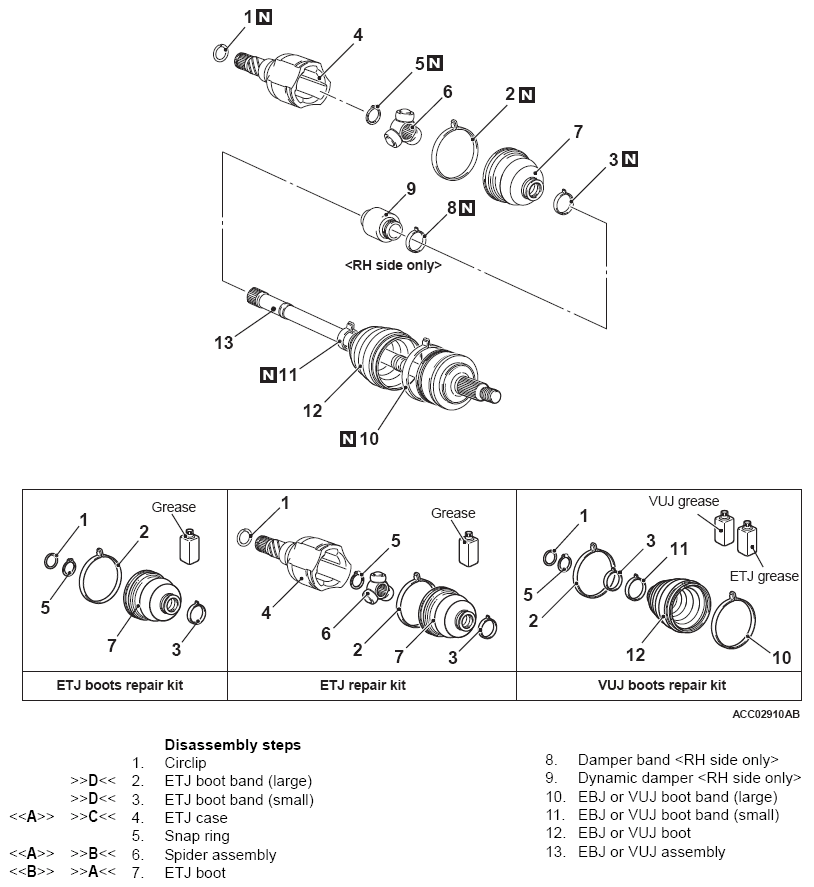

Fig 1: EBJ/VUJ Boot Disassembly Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
