Removal And Installation: Notes

CAUTION:

When removing and installing the driveshaft assembly, make sure that the magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When removing and installing the front wheel speed sensor, make sure that the pole piece at the end does not contact with surrounding parts to avoid damage.

Pre-removal operation

Engine room under cover front removal (Refer to REMOVAL AND INSTALLATION ).
Transmission fluid draining (Refer to TRANSMISSION OIL REPLACEMENT ). <M/T>
CVT fluid draining (Refer to TRANSMISSION FLUID REPLACEMENT ). <CVT>
Lower arm assembly and stabilizer bar connection removal (Refer to REMOVAL AND INSTALLATION ).

Post-installation operation

Using your fingers, press the ball joint dust cover to check for a crack or damage.
Lower arm assembly and stabilizer bar connection installation (Refer to REMOVAL AND INSTALLATION ).
CVT fluid refilling (Refer to TRANSMISSION FLUID REPLACEMENT ). <CVT>
Transmission fluid refilling (Refer to TRANSMISSION OIL REPLACEMENT ). <M/T>
Engine room under cover front installation (Refer to REMOVAL AND INSTALLATION ).
Check the beam direction of the headlight (Low beam) (Refer to HEADLIGHT AIMING ).

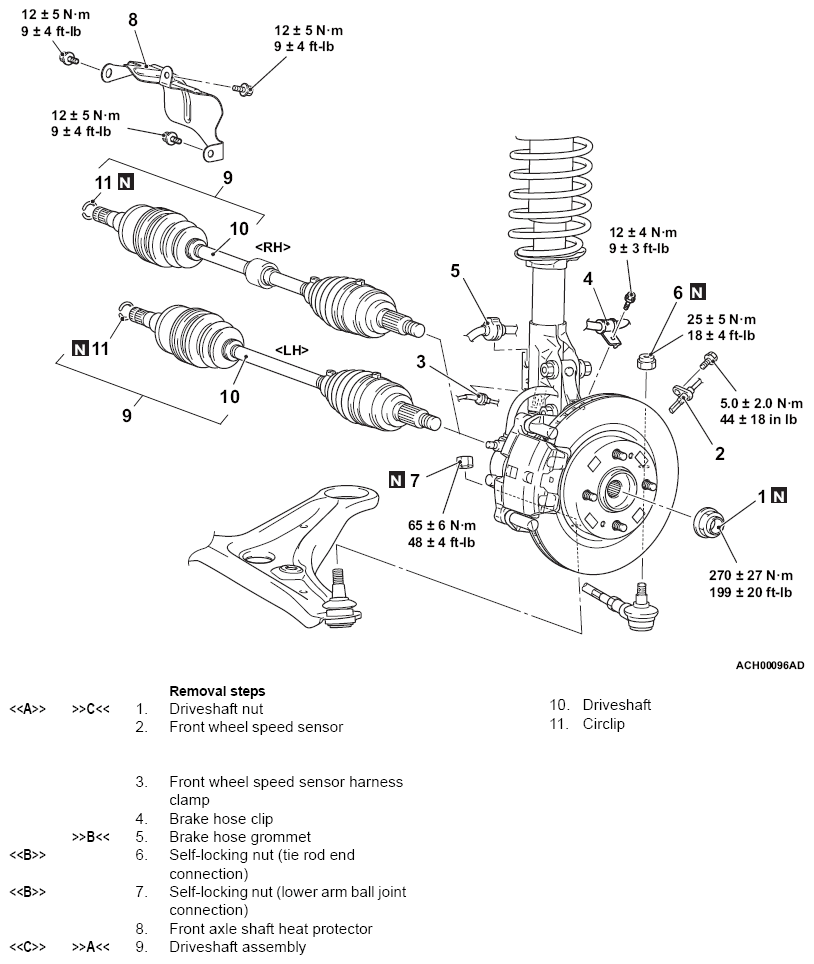

Fig 1: Removing/Installing Driveshaft Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
