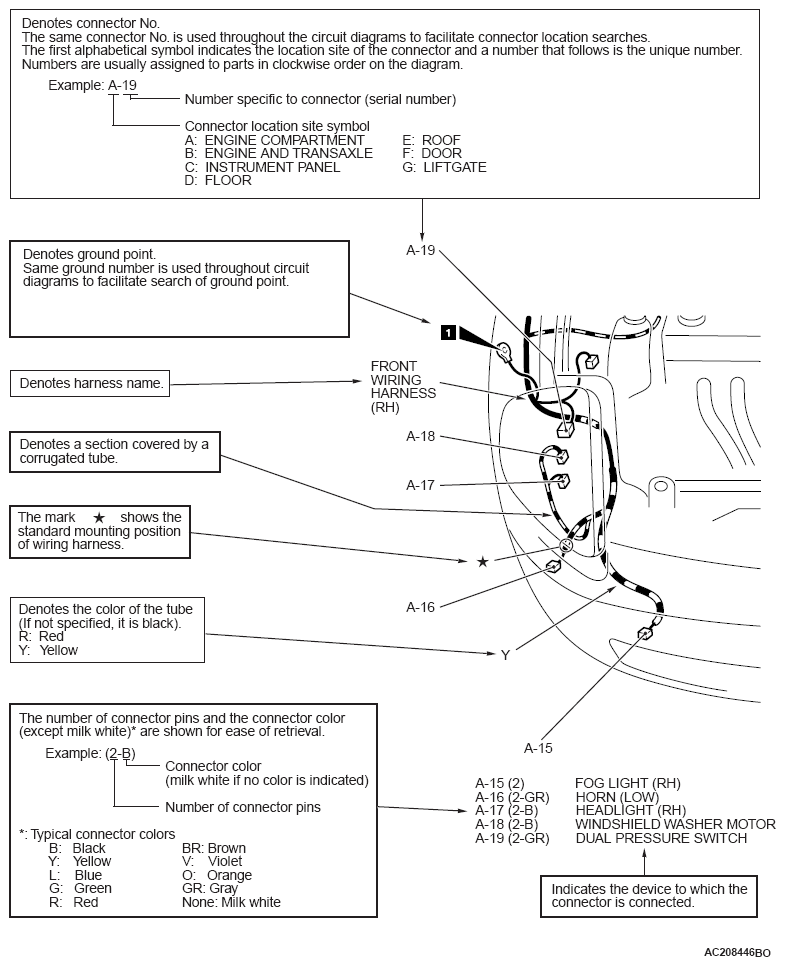

How To Read Configuration Diagrams
The wiring harness diagrams clearly show the connector locations and harness configurations on actual vehicles. Some variations are included in one configuration diagram. Accordingly, some diagrams may not be applicable for individual vehicles.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
