Instrument Panel

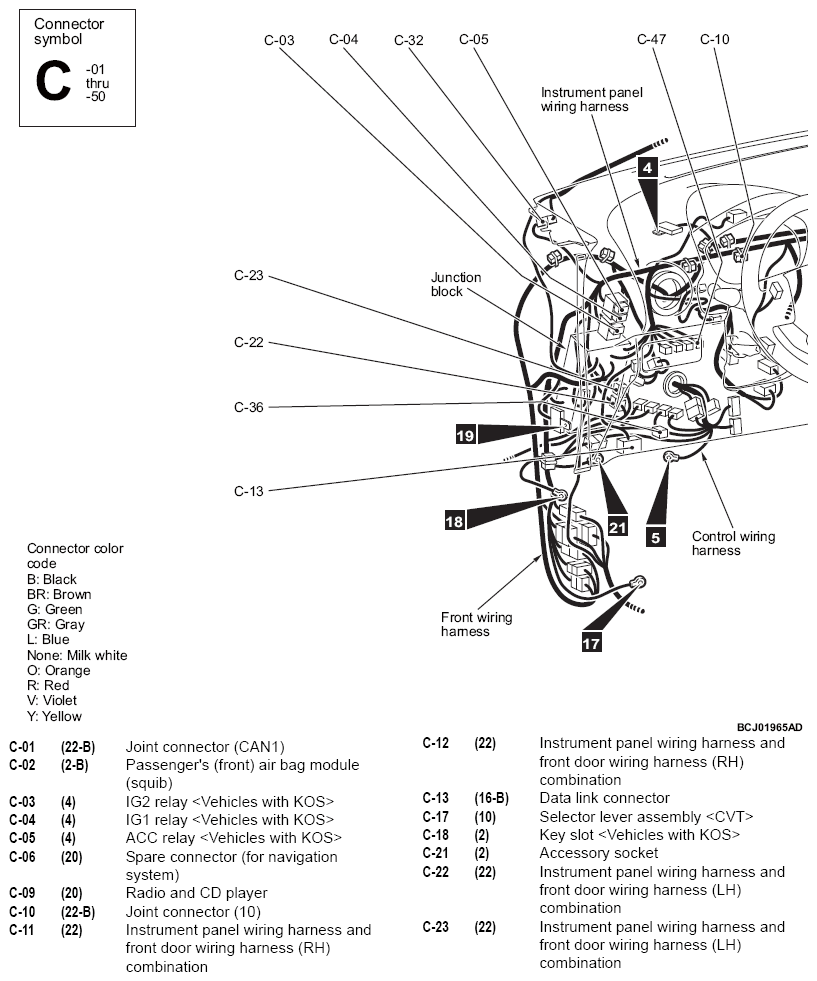

G13751806Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

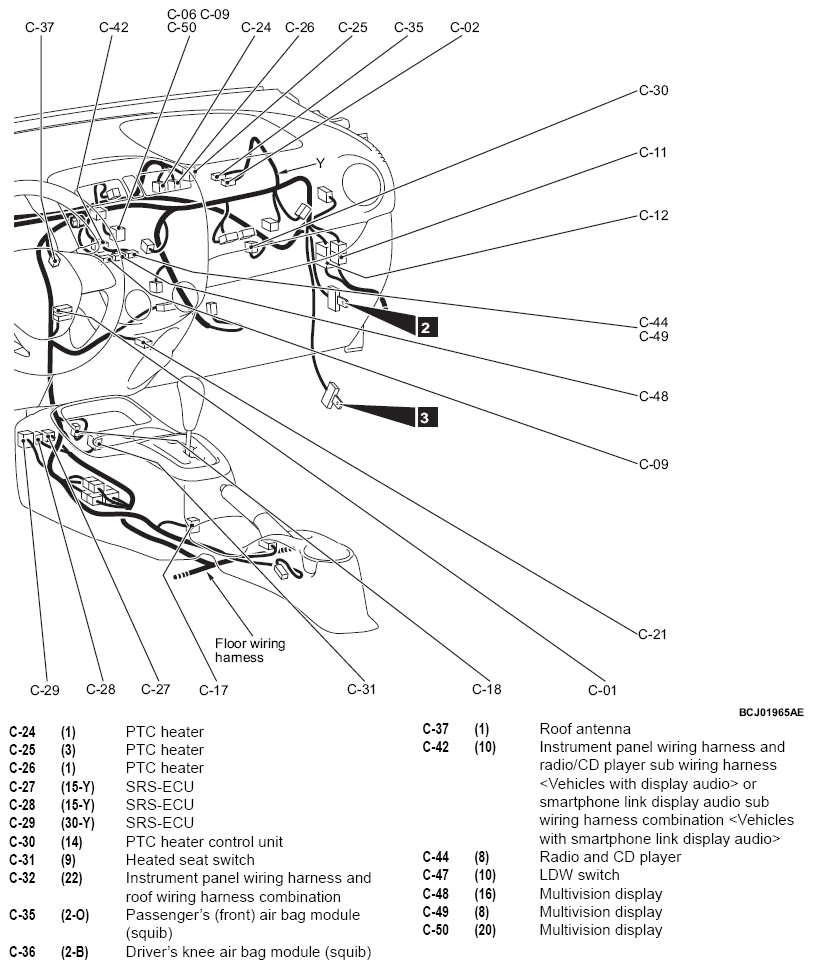

G13751807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

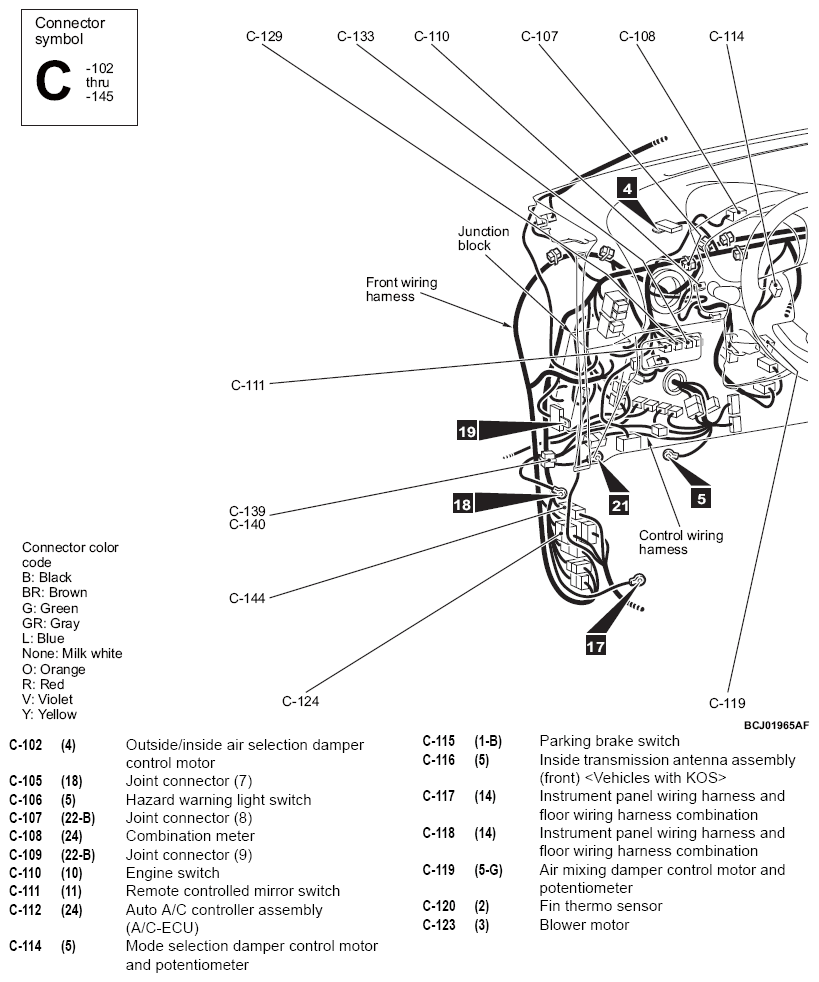

G13751808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

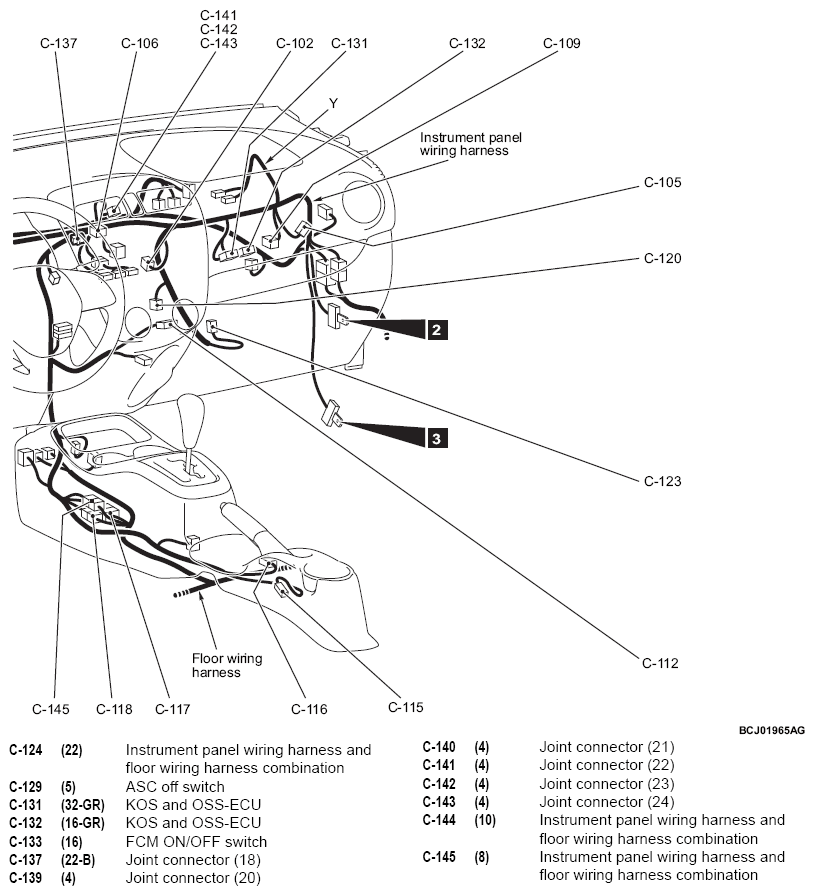

G13751809Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

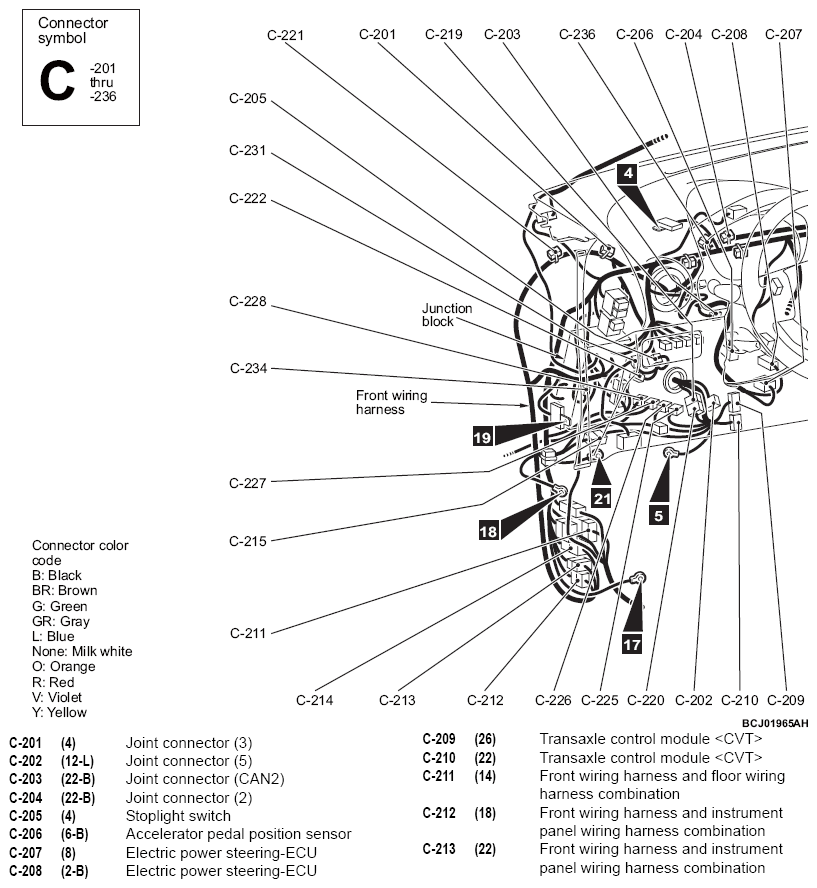

G13751810Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

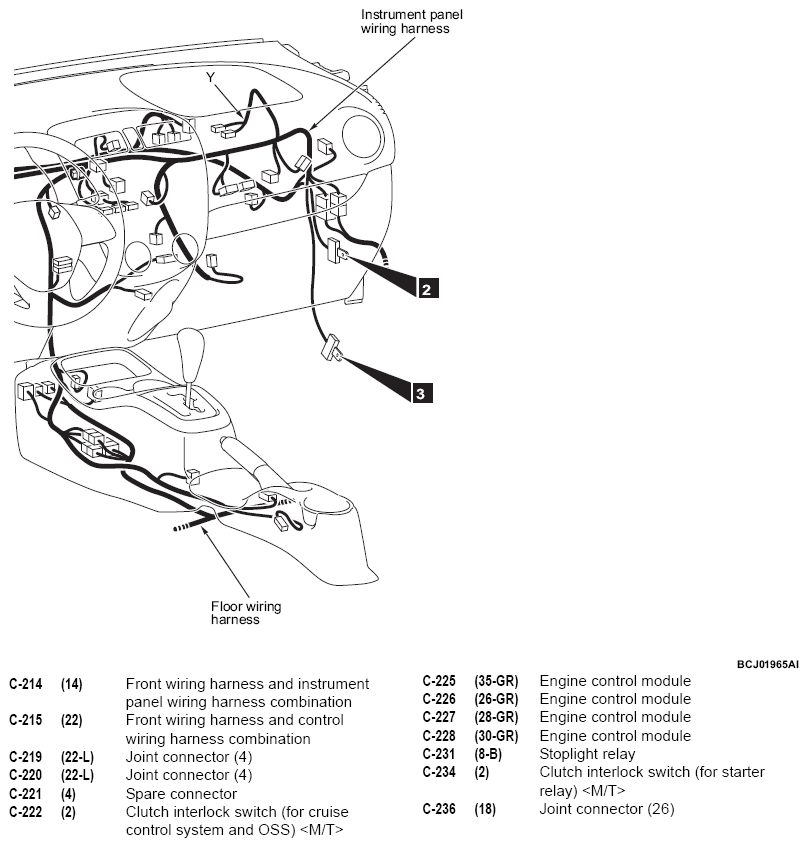

G13751811Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

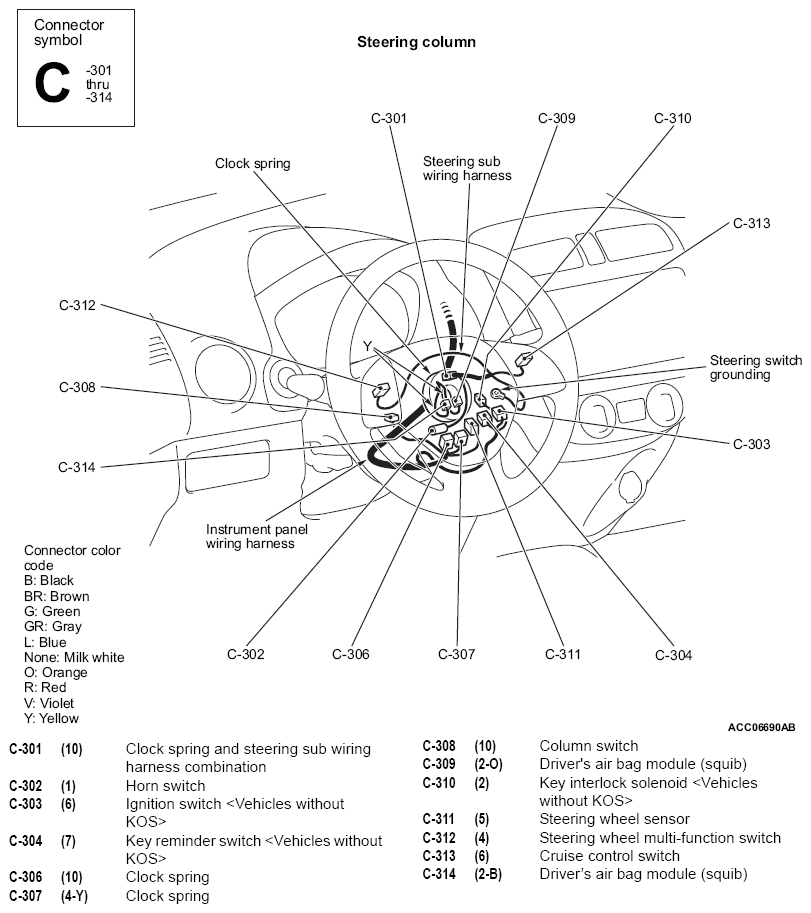

G13751812Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

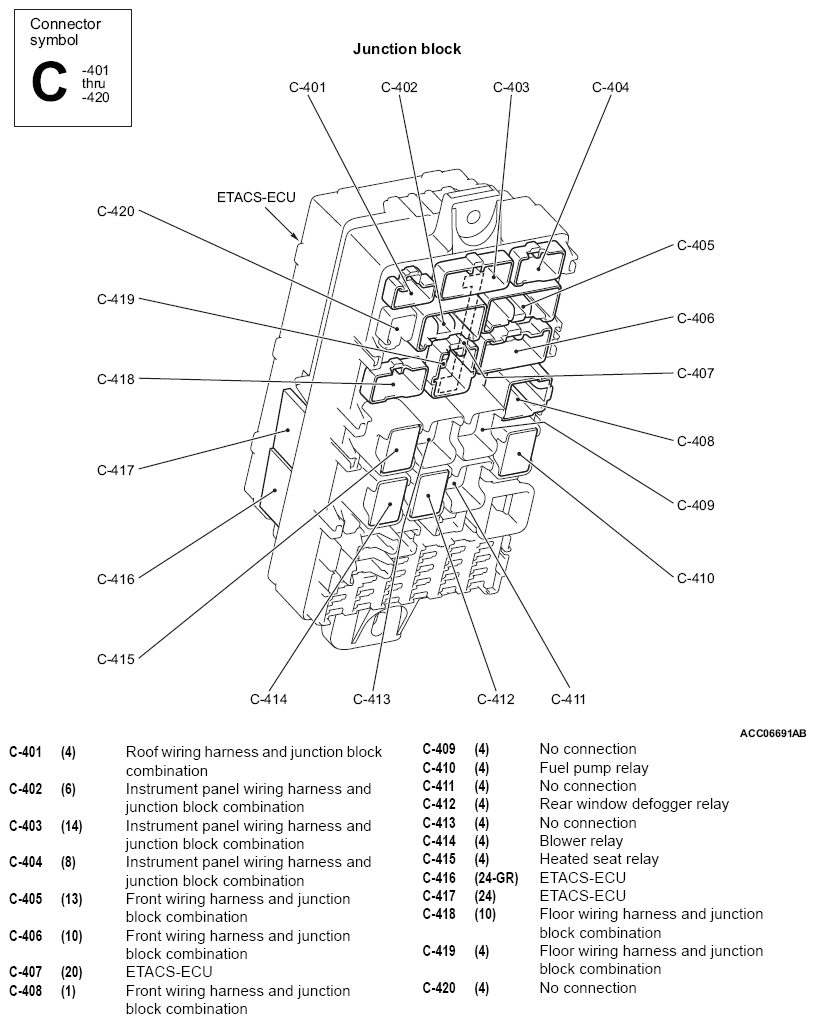

G13751813Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
