Removal And Installation: Notes

Pre-removal Operation Drive Belt Removal (Refer to DRIVE BELT REMOVAL ).

Post-installation Operation Drive Belt Installation (Refer to DRIVE BELT INSTALLATION ).

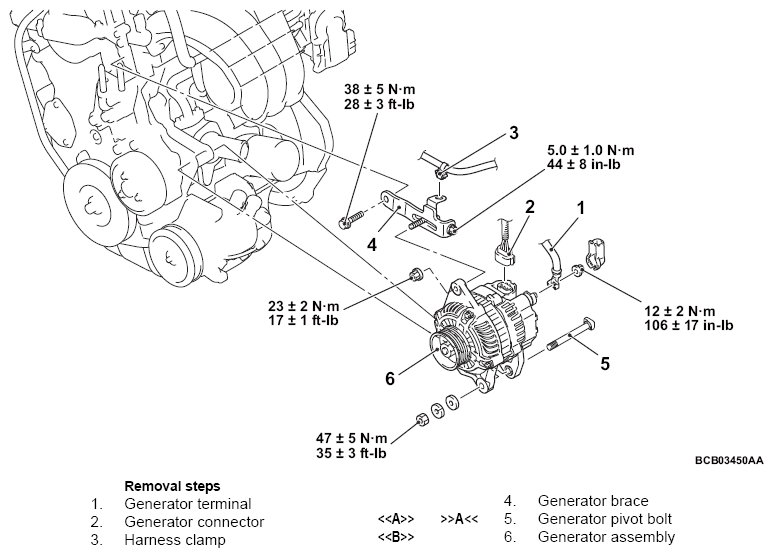

Fig 1: Removing/Installing Generator Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
