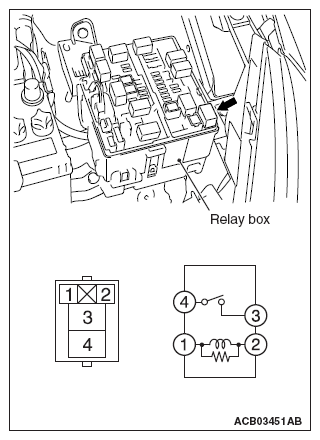

Starter Relay Continuity Check
BATTERY VOLTAGE
TERMINAL NUMBER TO BE CONNECTED TO TESTER
CONTINUITY TEST RESULTS
Not applied
4 - 3
Open loop
Connect terminal number 1 and positive battery terminal.
Connect terminal number 2 and negative battery terminal.
Should be less than 2 ohm
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
