Removal And Installation

CAUTION: Do not drop or hit the camshaft position sensor against other components. Internal damage may result, and the camshaft position sensor will need to be replaced.

Pre-removal and Post-installation Operation

Air Cleaner Cover and Air Cleaner Intake Hose Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

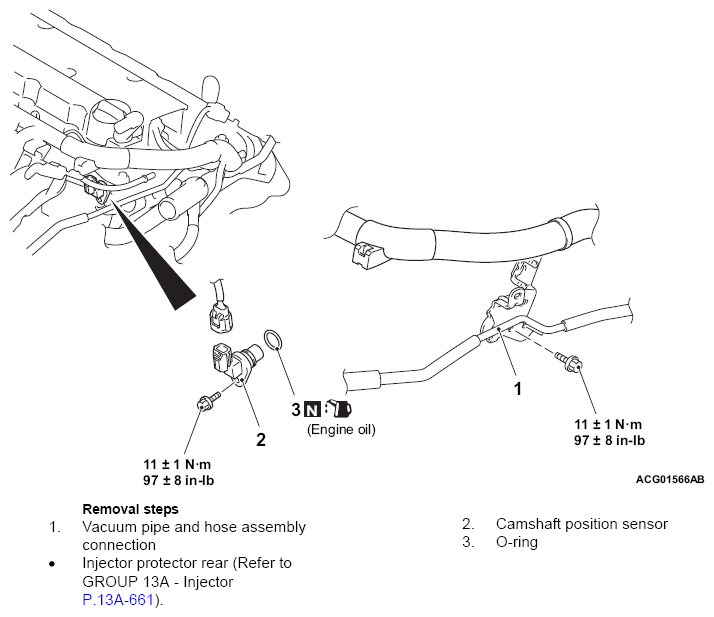

Fig 1: Removing/Installing Camshaft Position Sensor Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
