Removal And Installation: Notes

CAUTION:

• When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
• Do not reuse the manifold absolute pressure sensor that has been dropped.

Pre-removal and Post-installation Operation  Engine Coolant Draining and Refilling (Refer to ENGINE COOLANT REPLACEMENT ). Air Cleaner Bracket Removal and Installation (Refer to REMOVAL AND INSTALLATION  ). Throttle Body Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION ). Fuel Injector Removal and Installation (Refer to REMOVAL AND INSTALLATION ). EGR Valve Support Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

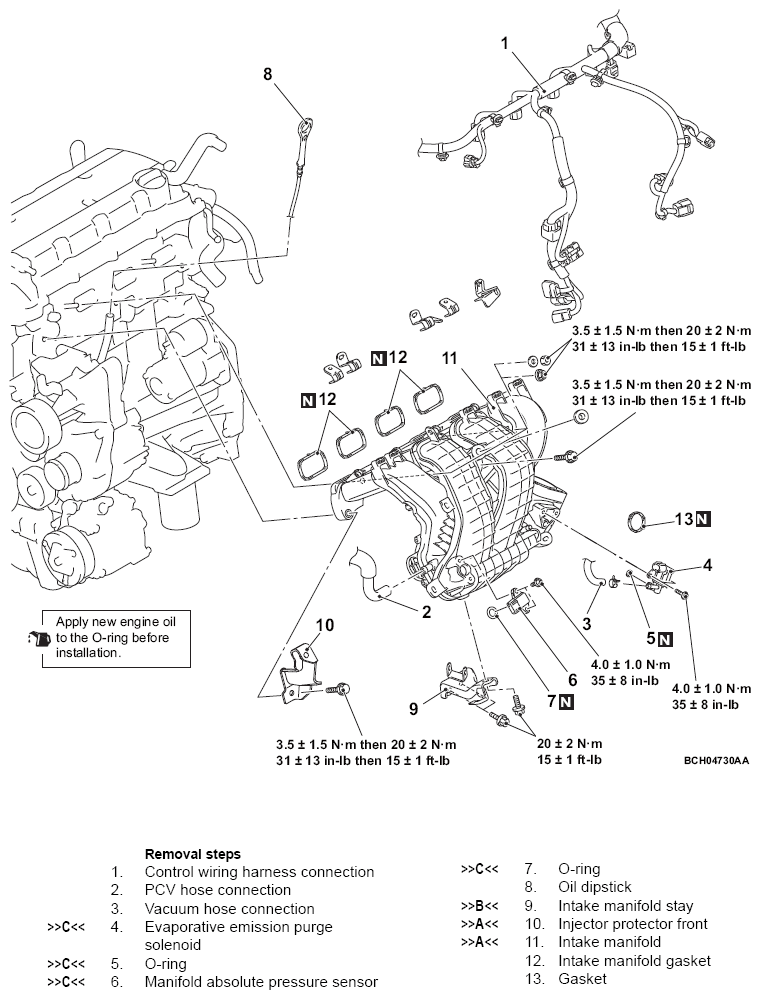

Fig 1: Removing/Installing Intake Manifold Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
