Removal And Installation

Pre-removal and post-installation operation  Bottom Cover Assembly (driver's side) Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

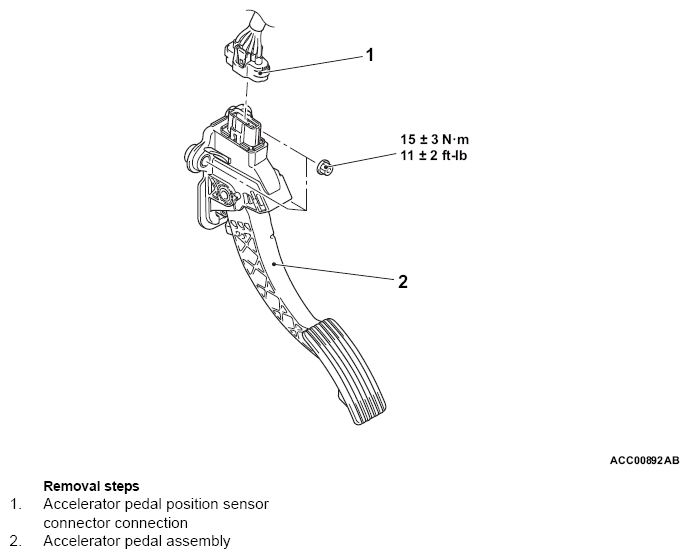

Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
