Steering Wheel Remote Control Switch Check
WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

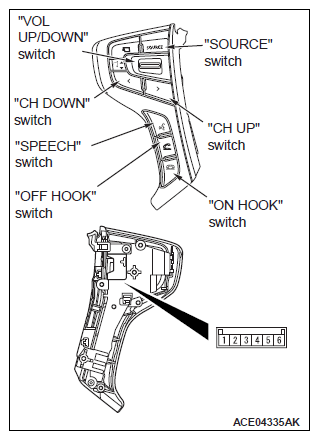

| Switch Position | Tester Connection | Resistance |
|---|---|---|
| "SOURCE" switch pushed | 1 - 2 | Approximately 270 Ω |
| "CH UP" switch pushed | Approximately 740 Ω | |
| "CH DOWN" switch pushed | Approximately 1, 3 kΩ | |
| "VOL UP" switch pushed | Approximately 2, 1 kΩ | |
| "VOL DOWN" switch pushed | Approximately 3, 1 kΩ | |
| "SPEECH" switch pushed | Approximately 4.6 kΩ | |
| "OFF HOOK" switch pushed | Approximately 6.3 kΩ | |
| "ON HOOK" switch pushed | Approximately 8.6 kΩ |
