Removal And Installation: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

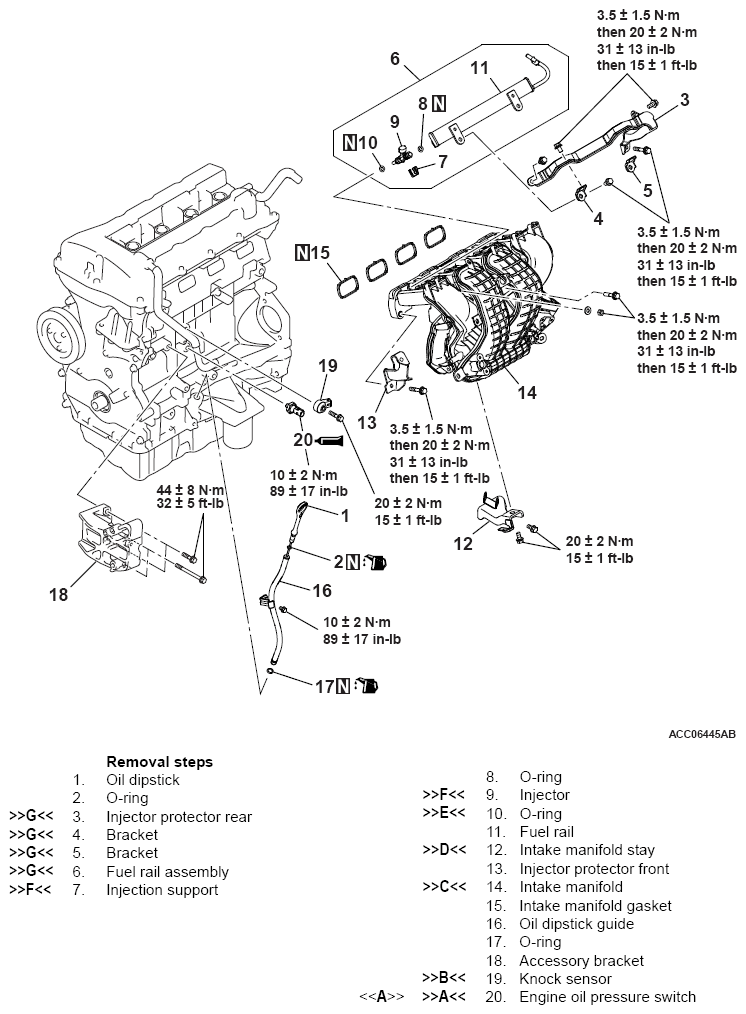

Fig 1: Removing/Installing Intake Manifold And Fuel System Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB992118: Oil Pressure Switch Wrench
MB992106: O-ring Installer
