WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
| Item | GG2W | |||
|---|---|---|---|---|
| XDHHZLCS | ||||

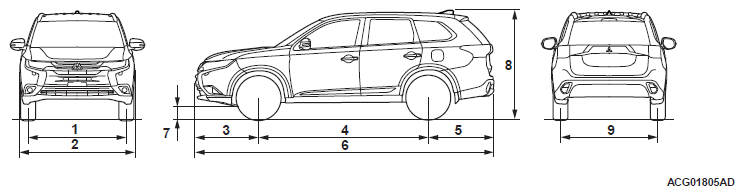

| Vehicle dimension mm (in) | Front track | 1 | 1, 540 (60.6) | |
| Overall width | 2 | 1, 800 (70.9) | ||
| Front overhang | 3 | 990 (39.0) | ||
| Wheelbase | 4 | 2, 670 (105.1) | ||
| Rear overhang | 5 | 1, 035 (40.7) | ||
| Overall length | 6 | 4, 695 (184.8) | ||
| Ground clearance (unladen) | 7 | 190 (7.5)<Without pipe protector> 185 (7.3)<With pipe protector> | ||
| Overall height (unladen) | 8 | 1, 710 (67.3) | ||
| Rear track | 9 | 1, 540 (60.6) | ||
| Vehicle weight kg (lb) | Curb weight | Without full optional parts | 1, 915 (4, 222) | |
| With full optional parts | 1, 970 (4, 343) | |||
| Gross vehicle weight | 2, 370 (5, 225) | |||
| Gross axle weight rating-front | 1, 200 (2, 646) | |||
| Gross axle weight rating-rear | 1, 270 (2, 800) | |||
| Gross combination weight | 2, 982 (6, 574) | |||
| Seating capacity | 5 | |||
| Engine | Model code | 4B11 | ||
| Type | DOHC MIVEC petrol engine | |||
| Total displacement cm3 (cu in) | 1, 998 (121.9) | |||
| Maximum output kW/r/min (HP/r/min) | 87/4, 500 (117/4, 500) | |||
| Maximum torque N.m/r/min (ft-lb/r/min) | 186/4, 500 (137/4, 500) | |||
| Motor | Model No. Front/Rear | S61/Y61 | ||
| Max. output <EEC> Front/Rear kW | 60/60 | |||
| Max. torque <EEC> Front/Rear N.m | 137/195 | |||
| Fuel system | Fuel supply system | MFI | ||
| Transaxle | Model code | F1EKA (Front) F1E1A (Rear) | ||
| Type | Without shifting function | |||
| Minimum turning radius m (ft) | Body | 5.76 (18.898) | ||
| Wheel | 5.3 (17.39) | |||
