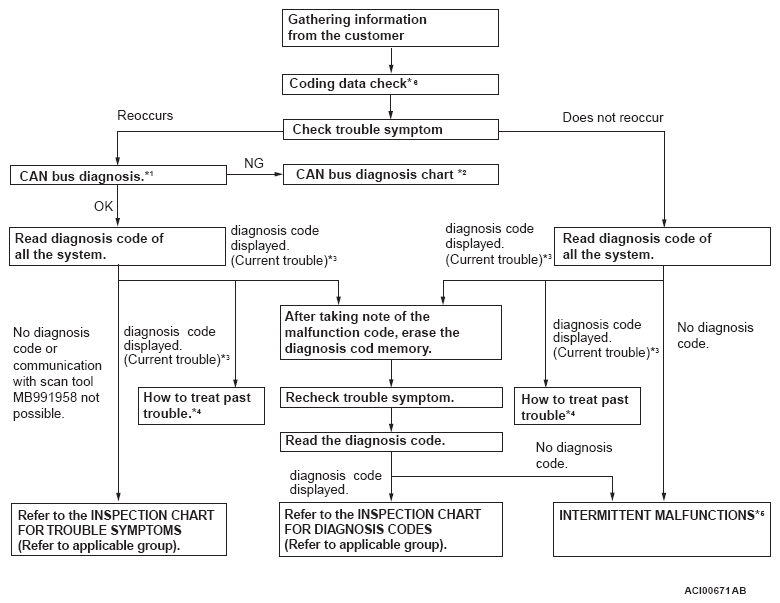

Diagnostic method

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

^*1: For how to diagnose CAN bus lines, refer to EXPLANATION ABOUT THE SCAN TOOL (M.U.T.-IIISE) CAN BUS DIAGNOSTICS .
*² : For the CAN bus diagnosis chart, refer to CAN BUS DIAGNOSTICS TABLE .
*³ : When scan tool MB991958 detects a diagnostic trouble code, its display informs users whether a mechanical symptom currently exists or whether it existed before. The message for the former state identifies it as an "Active" and the message for the latter identifies it as a "Stored".
*⁴ : For how to treat past trouble, refer to HOW TO TREAT PAST TROUBLE .
*⁵ : For how to cope with intermittent malfunctions, refer to CONNECTOR ENGAGEMENT INSPECTION .
*⁶ : For coding data, refer to CODING LIST .
