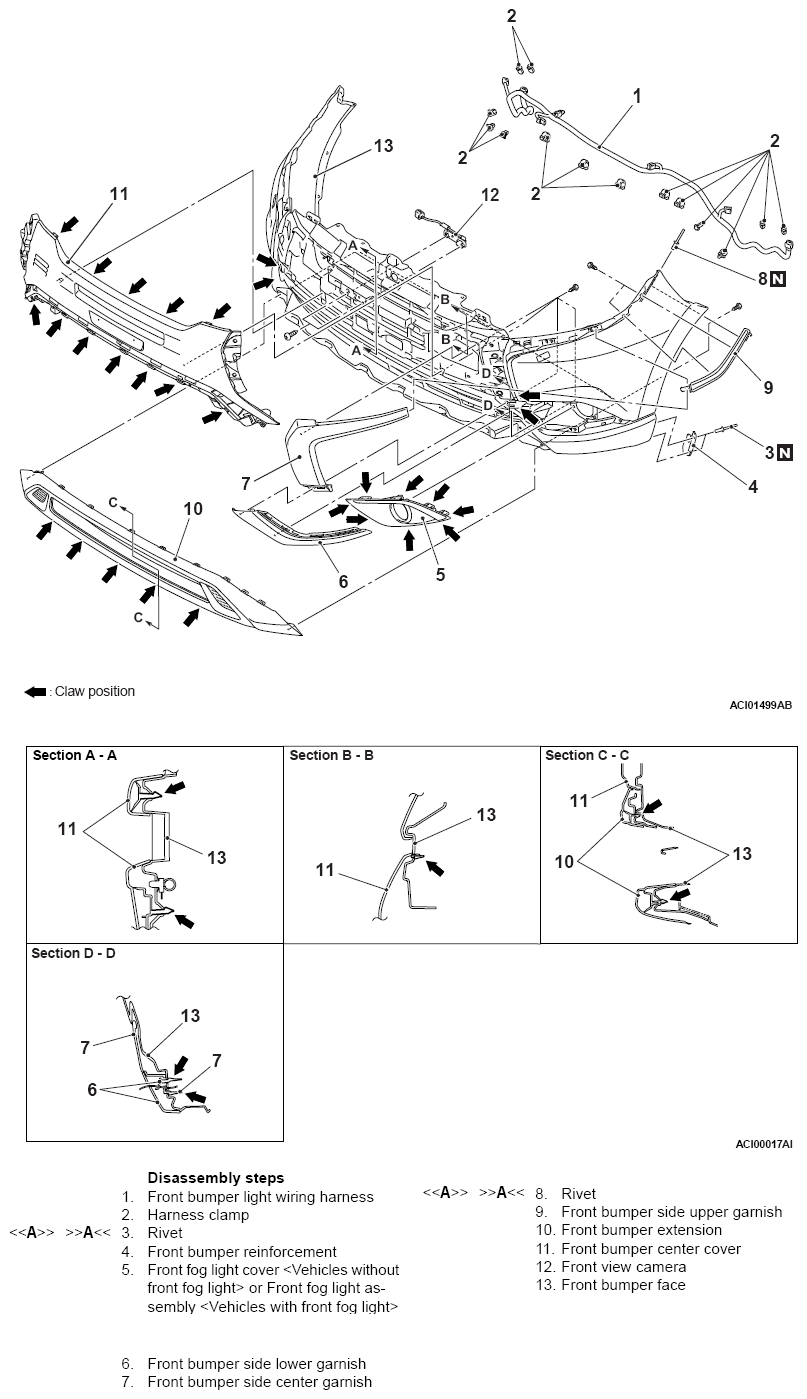

Disassembly And Reassembly: Notes
WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When you remove/install or replace the camera, you should check the camera image on the multi around monitor "Bird-eye view." If necessary, calibrate the monitor (Refer to - On-vehicle service, How to calibrate Multi Around Monitor ON-VEHICLE SERVICE ). <Vehicles with multi around monitor>
- To ensure the camera image is clearly visible, wipe the lens with a damped rag and then a dry rag to remove dust, rain drops or snow.
- Be careful not to damage the camera. Any damage may have an adverse effect on the screen image.
Post-installation Operation
Front Fog light Aiming Adjustment (Refer to Fog light - On-vehicle Service ON-VEHICLE SERVICE ) <Vehicles with Fog Light>.
