On-Vehicle Service: Calibration
WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

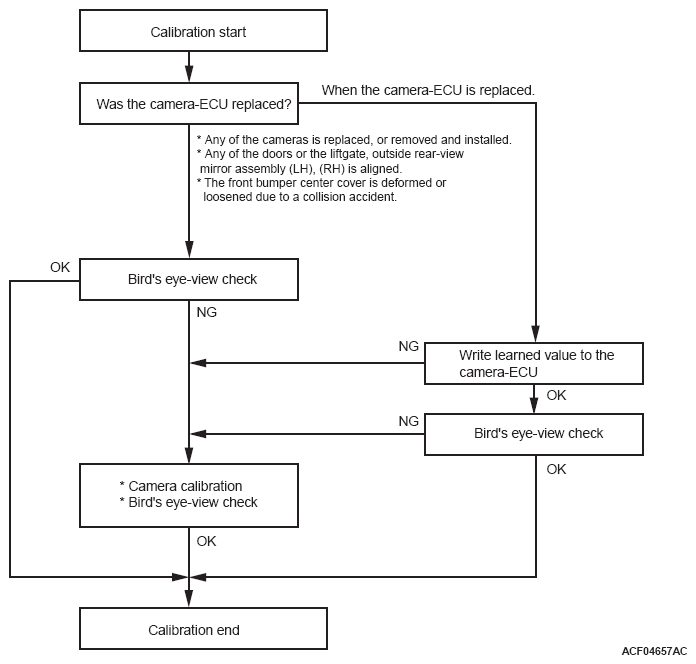

Calibrate according to the procedure below after the following operation is performed:
- Replacement of the camera-ECU
- Removal and installation/replacement of a camera
- Any of the door or the liftgate, Outside rear-view mirror assembly (LH), (RH) is aligned.
- The front bumper center cover is deformed or loosened due to a collision accident.
