Removal And Installation

CAUTION:

Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE AIRBAG MODULE(S) .
Before removing the front seat assembly, refer to OCCUPANT CLASSIFICATION ECU OCCUPANT CLASSIFICATION SENSOR .

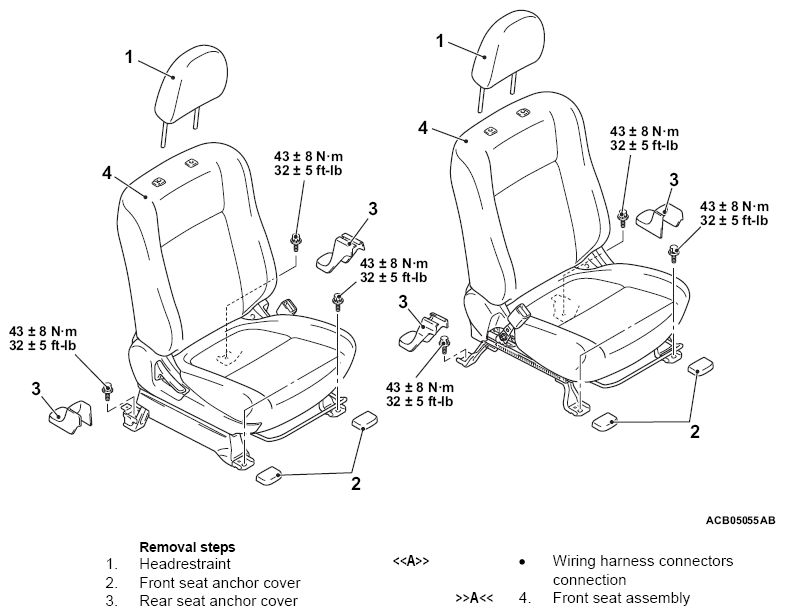

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
