Proportional Valve Check

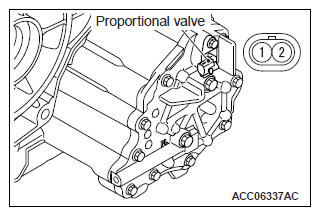

Measure the resistance between proportional valve connector terminals 1 and 2.
Standard value: Approximately 5.3 Ω
If not within the standard value, replace the valve body assembly.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
