Dash Panel

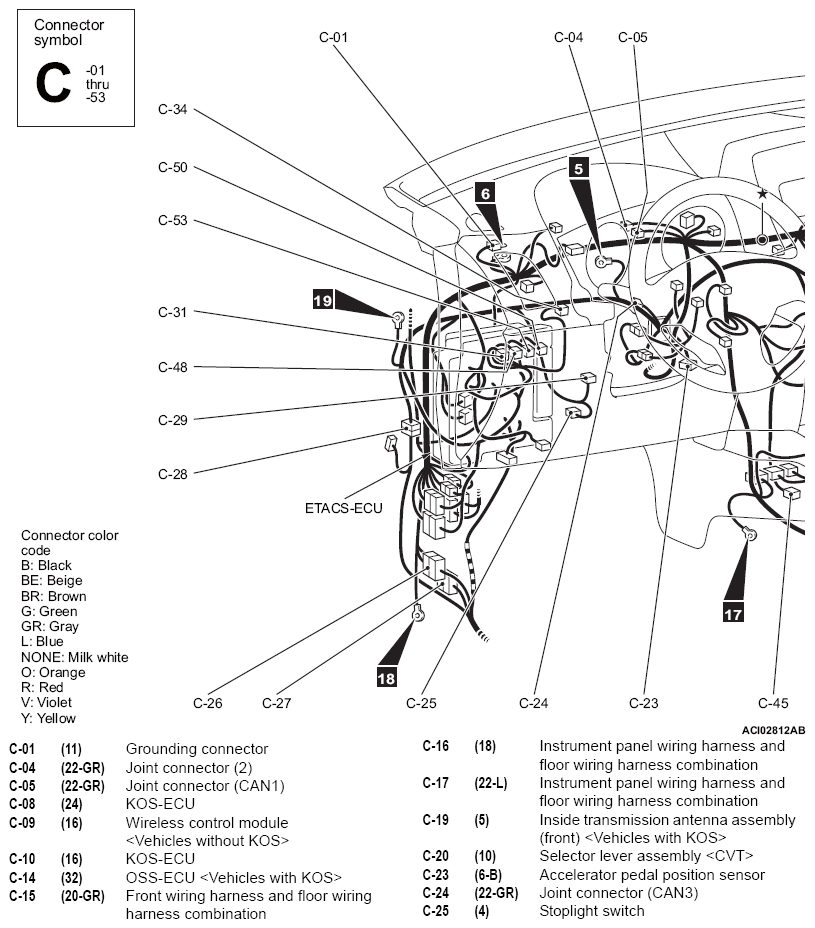

G14220083Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

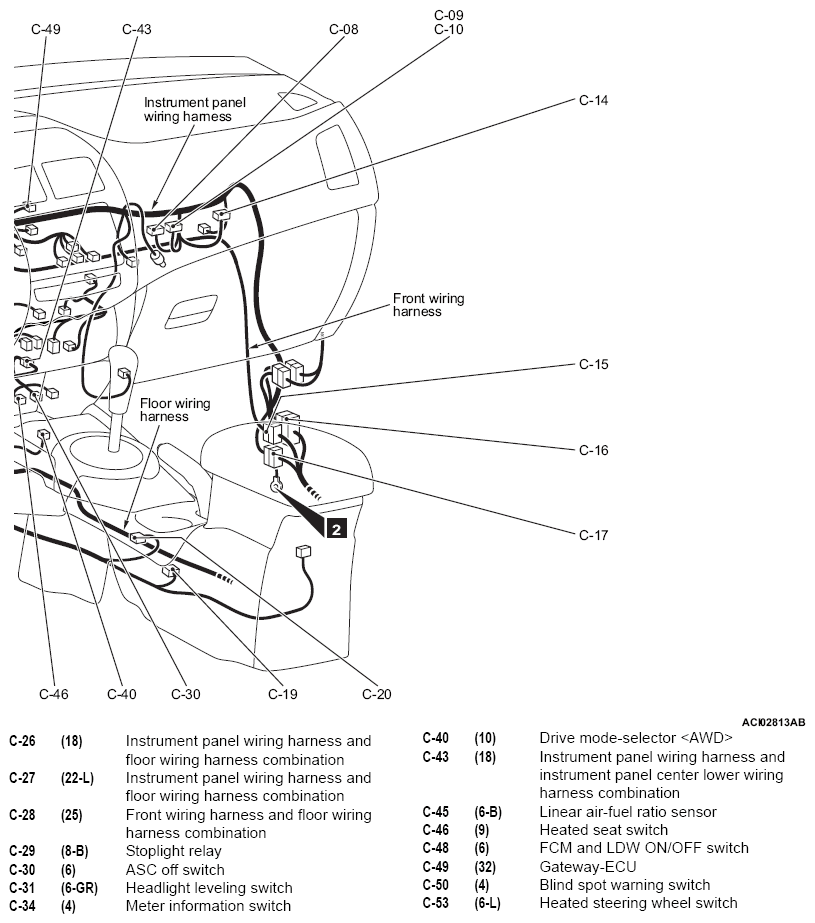

G14220084Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

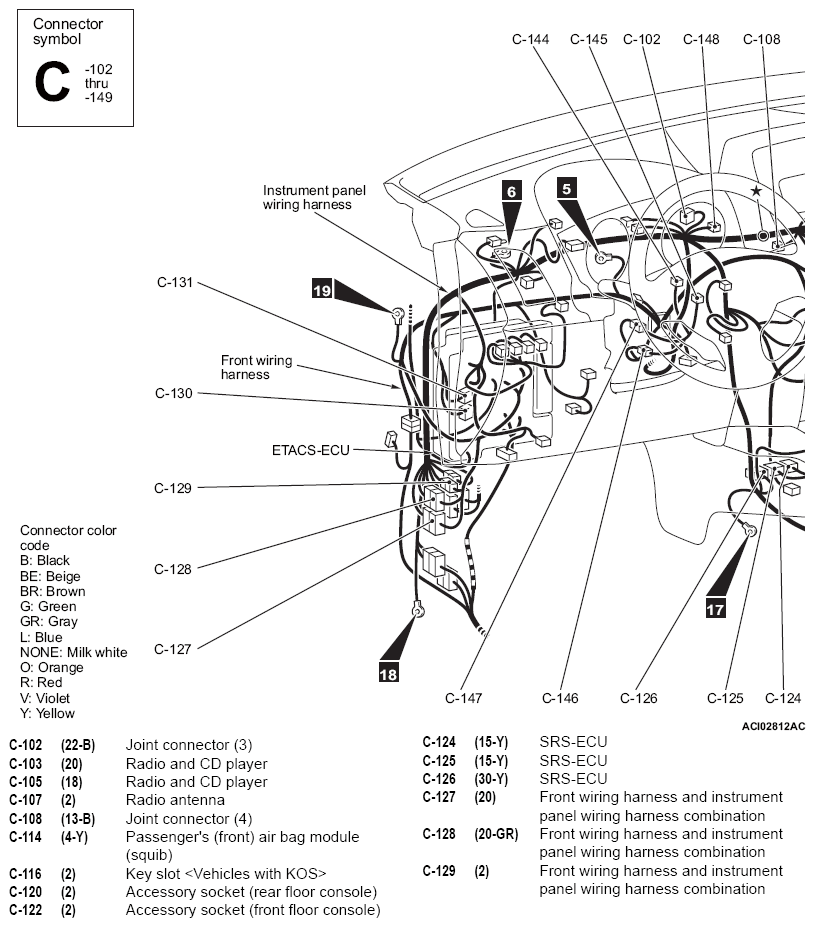

G14220085Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

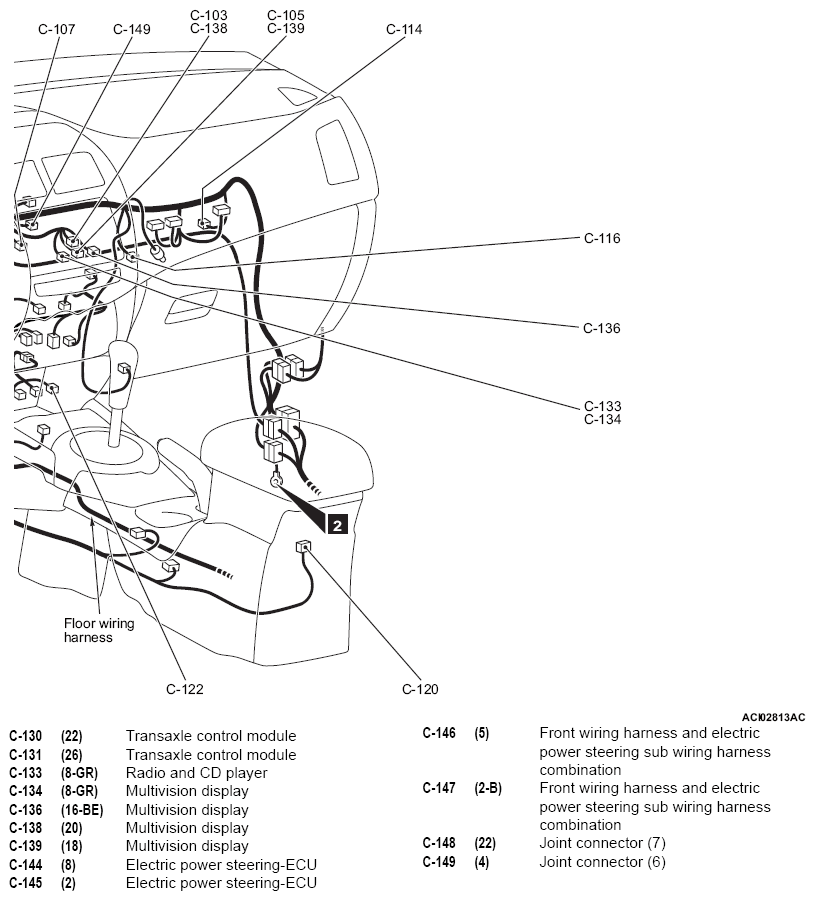

G14220086Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

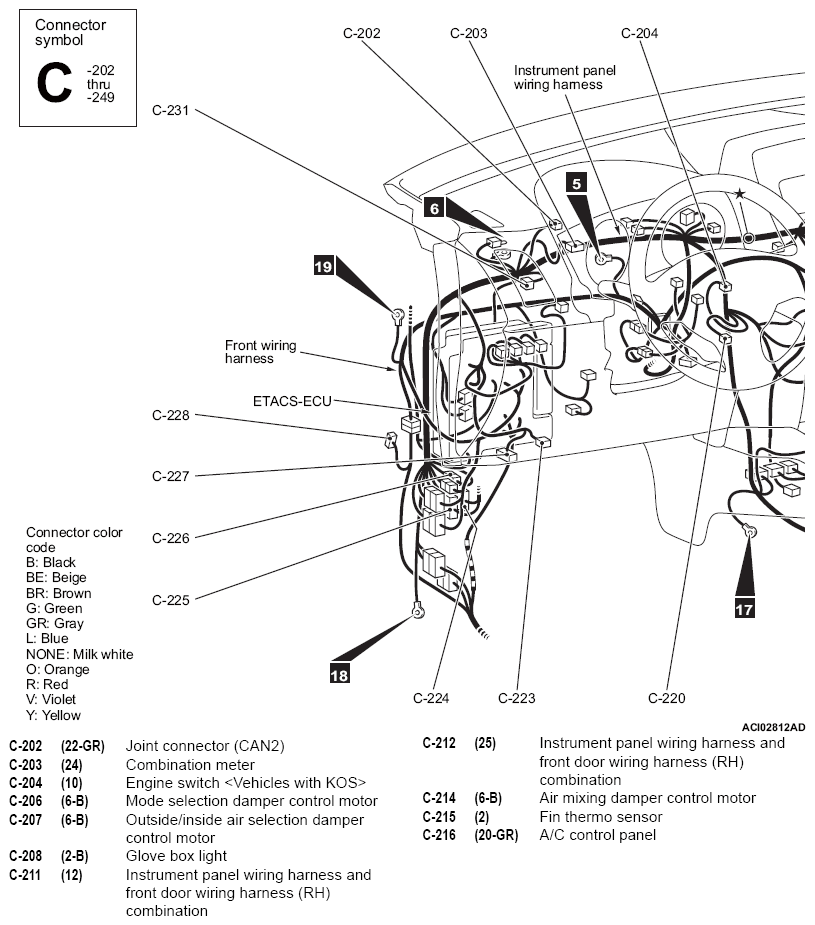

G14220087Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

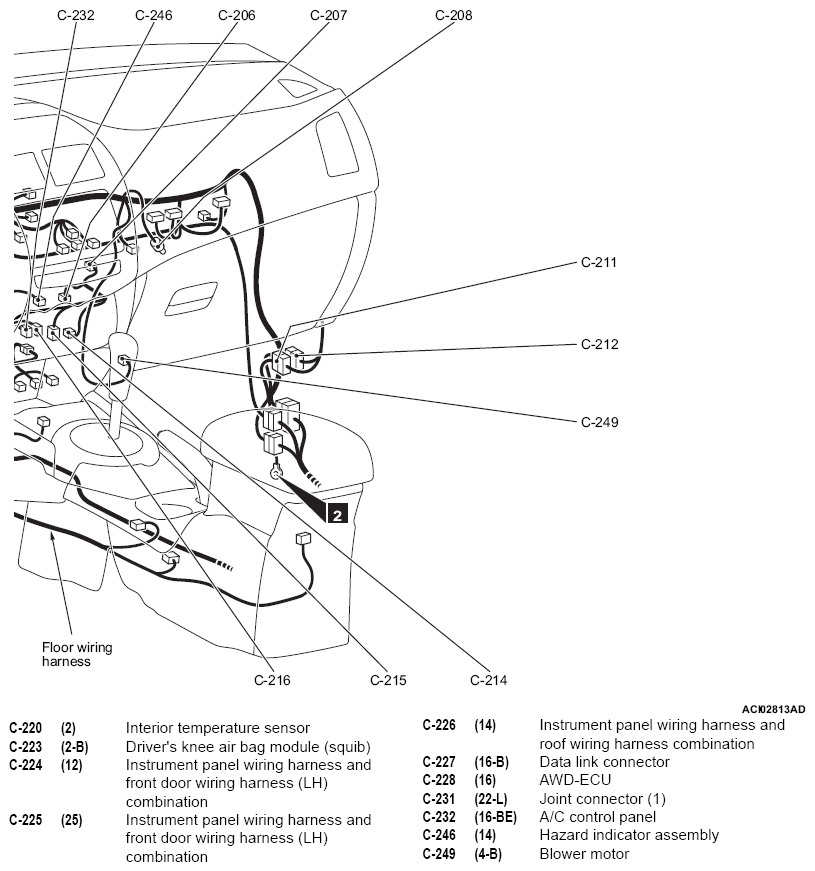

G14220088Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

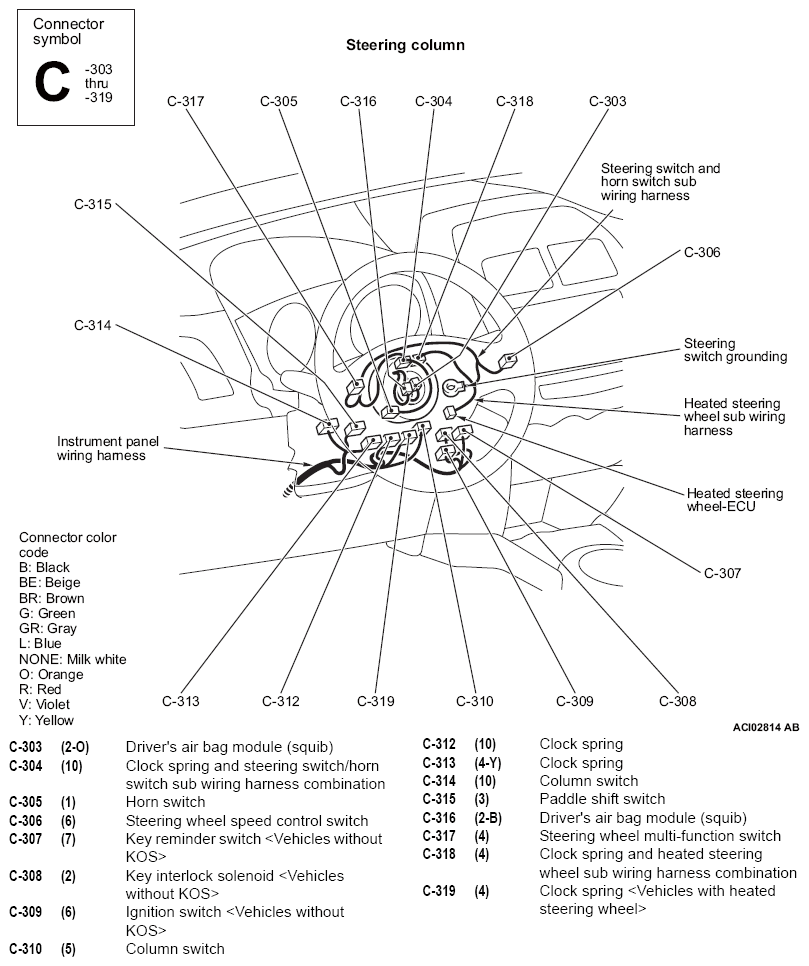

G14220089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

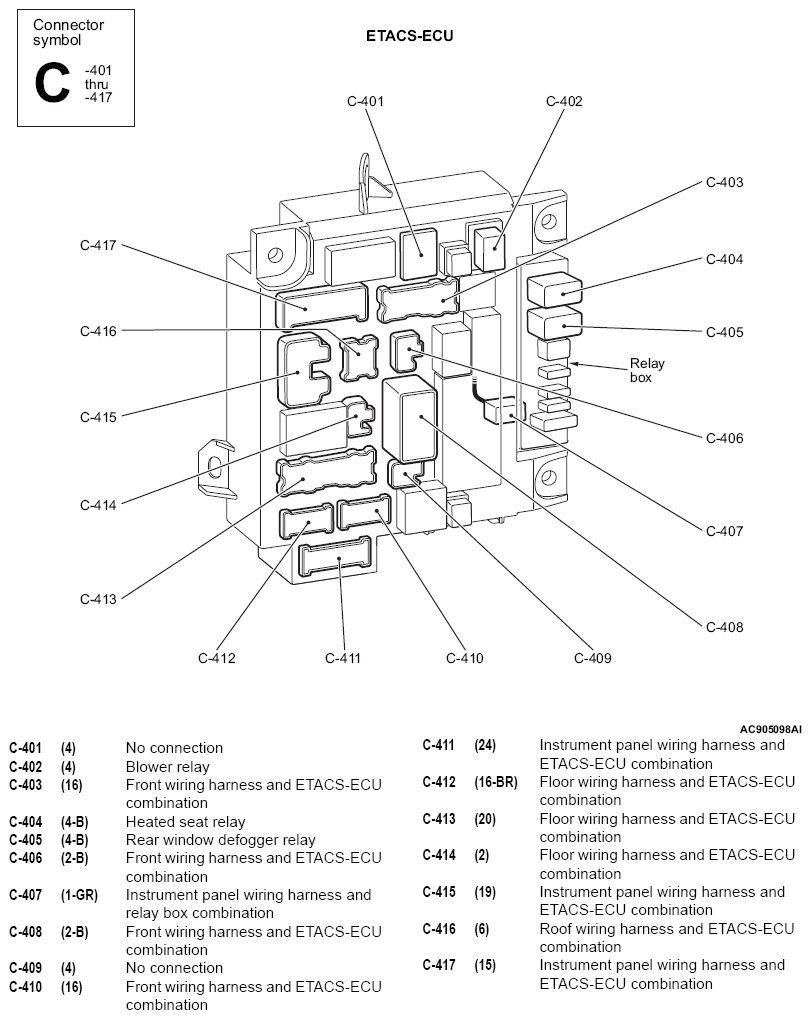

G14220090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
