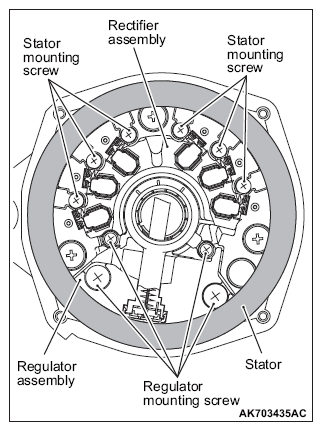

«c» STATOR/REGULATOR ASSEMBLY REMOVAL

1. Remove 6 installation screws of the stator lead wire, and then remove the stator.
2. Remove 4 installation screws of the regulator to remove the regulator assembly.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
