Removal And Installation: Notes

Pre-removal and Post-installation Operation

• Engine Room Under Cover Front A Removal and Installation (Refer to UNDER COVER ).
• Emission Vacuum Hose Removal and Installation (Refer to INTAKE MANIFOLD ).
• Brake Booster Vacuum Hose Removal and Installation (Refer to MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ).
• Intake Manifold Stay Removal and Installation (Refer to INTAKE MANIFOLD ).

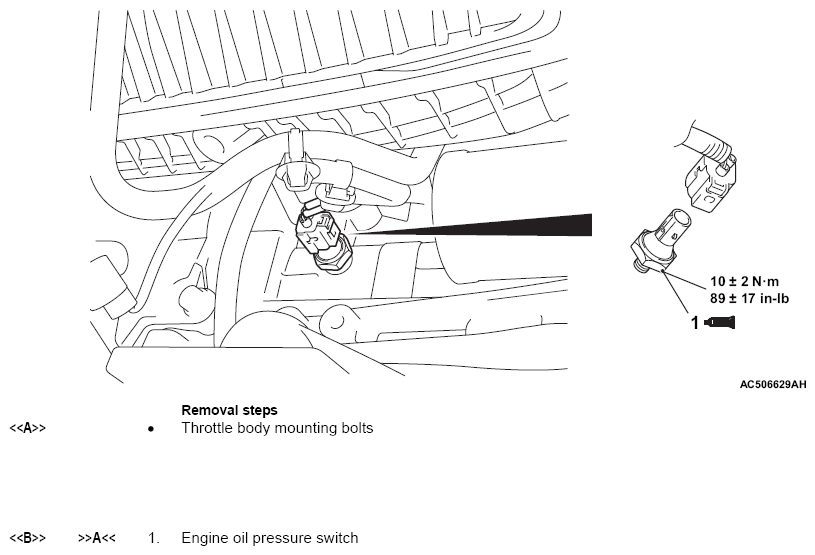

Fig 1: Removing/Installing Engine Oil Pressure Switch Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992118: Oil Pressure Switch Wrench
