Removal And Installation: Notes

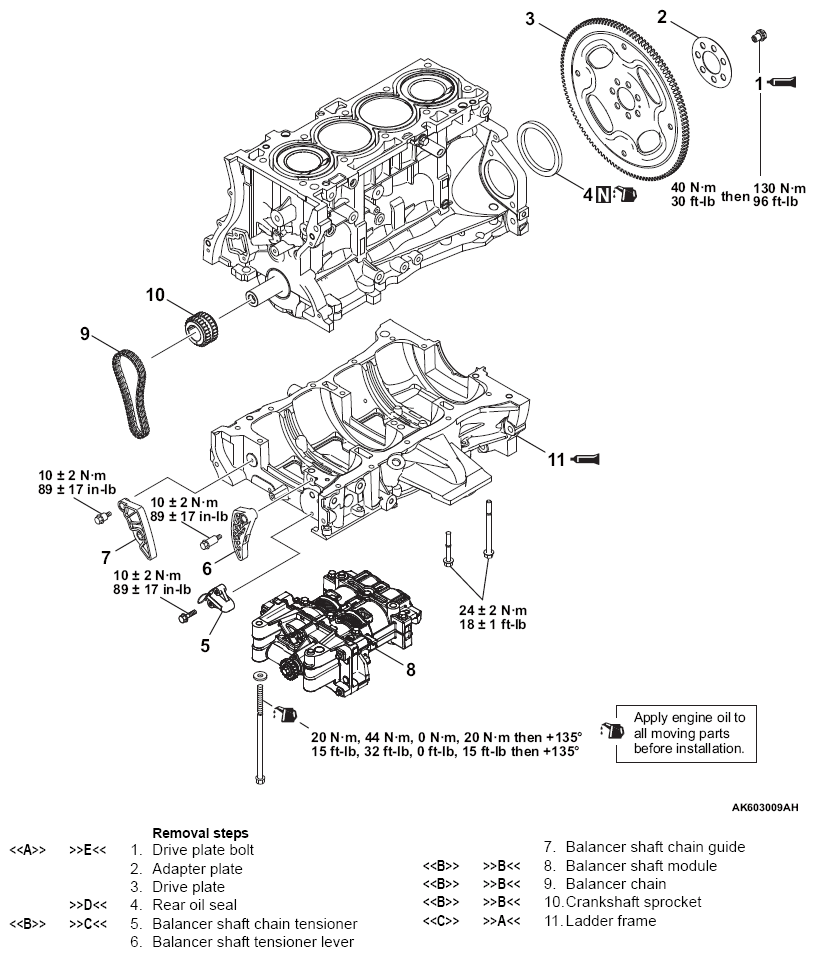

Fig 1: Removing/Installing Balancer Chain Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991883: Flywheel stopper
• MB991614: Angle gauge
• MD998718: Rear oil seal installer
