FixVault
Home
›
Mitsubishi
›
2021
›
RVR LE
›
Repair and Diagnosis
›
Engine Performance
›
Wiring Diagrams
›

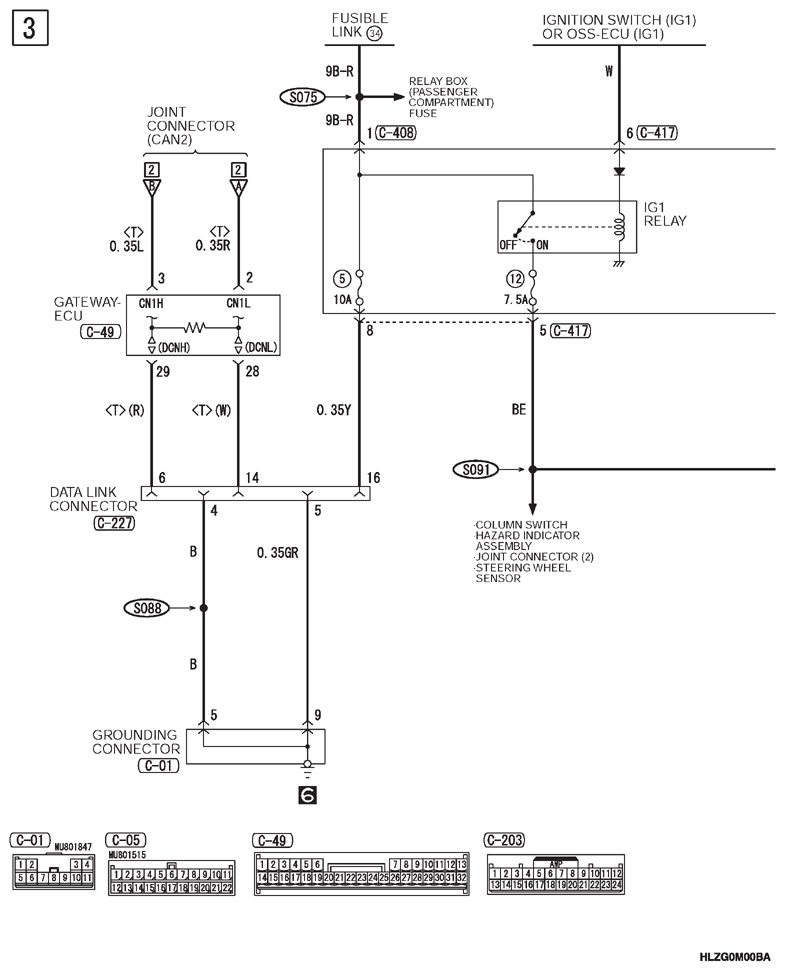

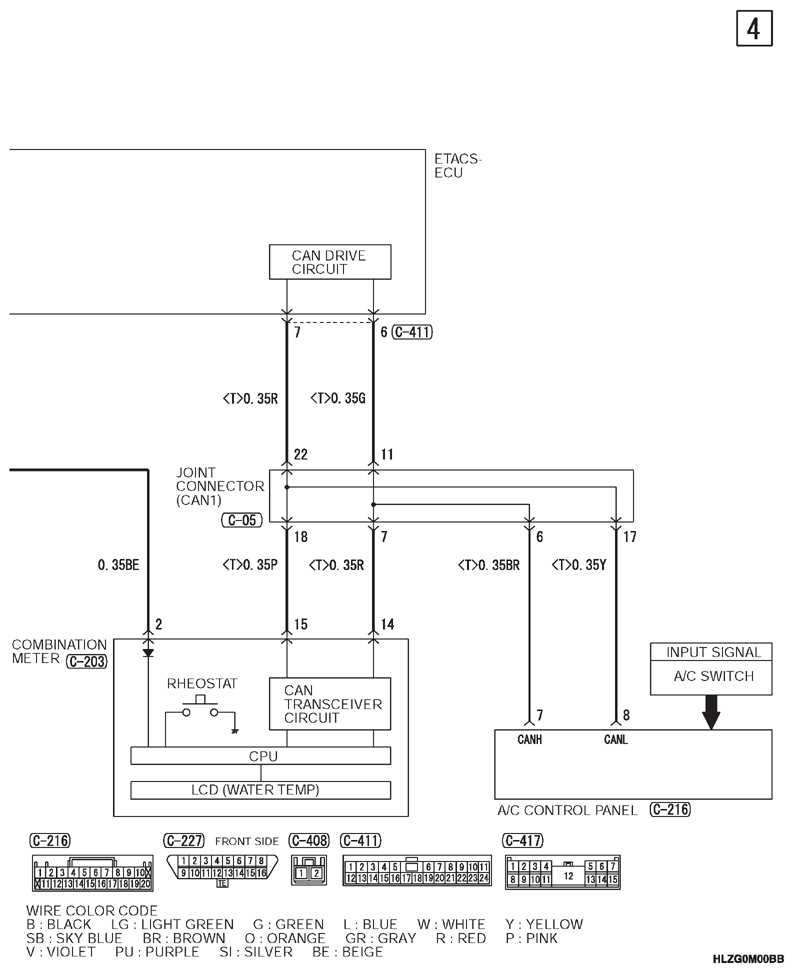

Circuit Diagrams
›

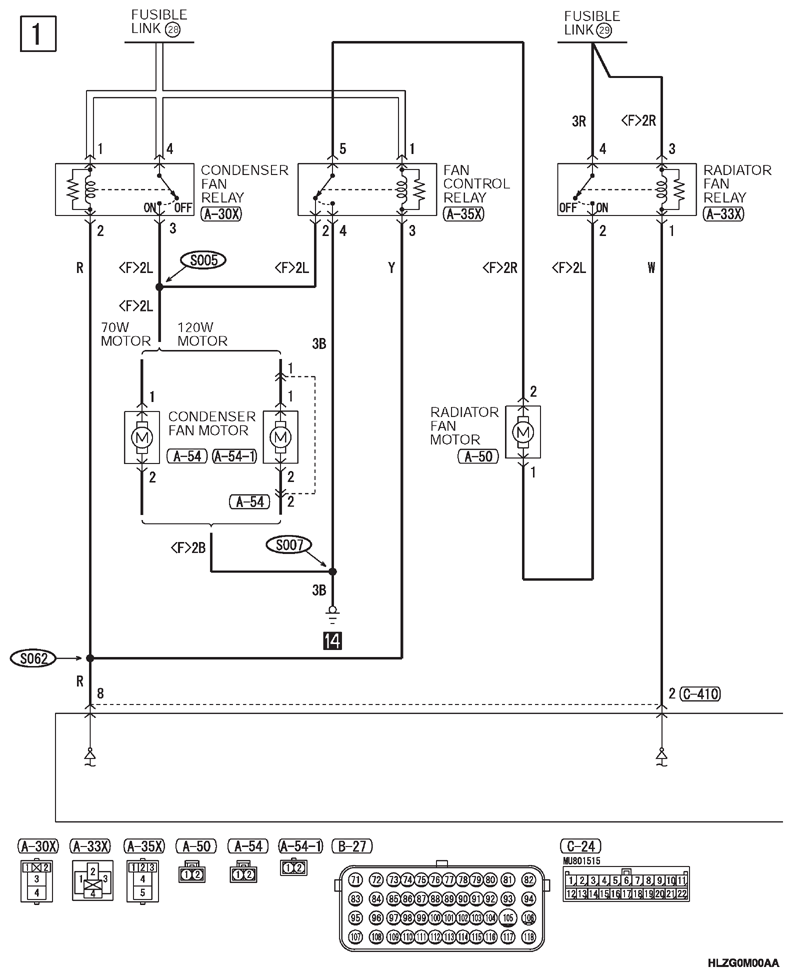

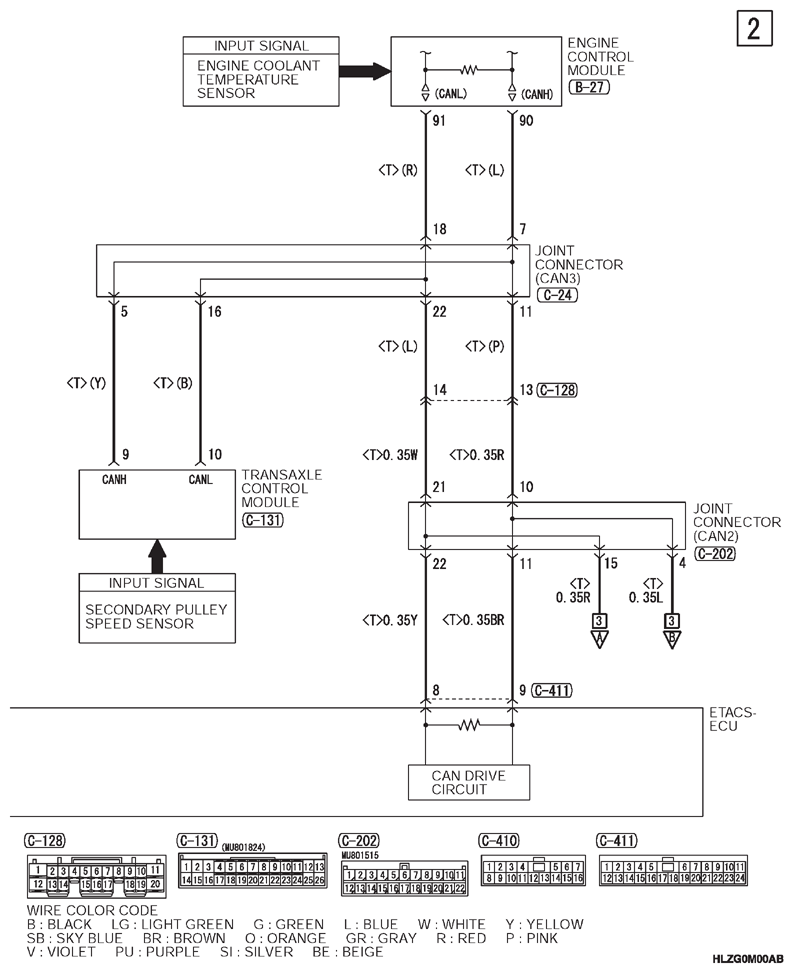

Cooling System
Cooling System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
