Mitsubishi
›
2021
›
RVR LE
›
Repair and Diagnosis
›
Engine Performance
›
Wiring Diagrams
›
Circuit Diagrams
›
Ignition System

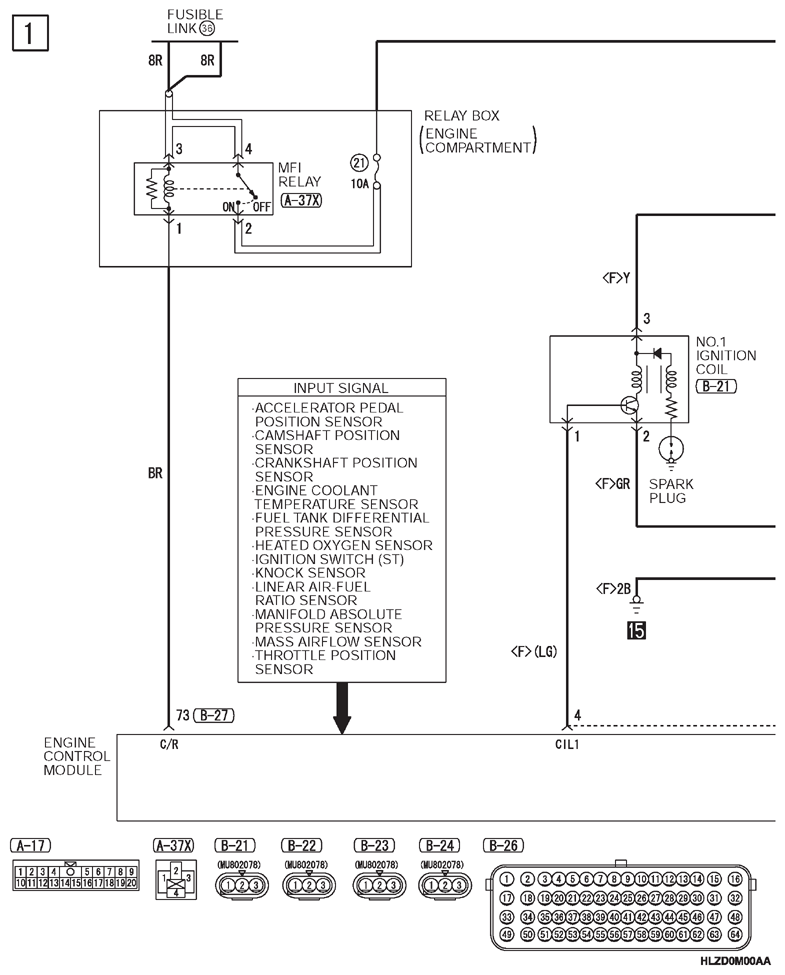

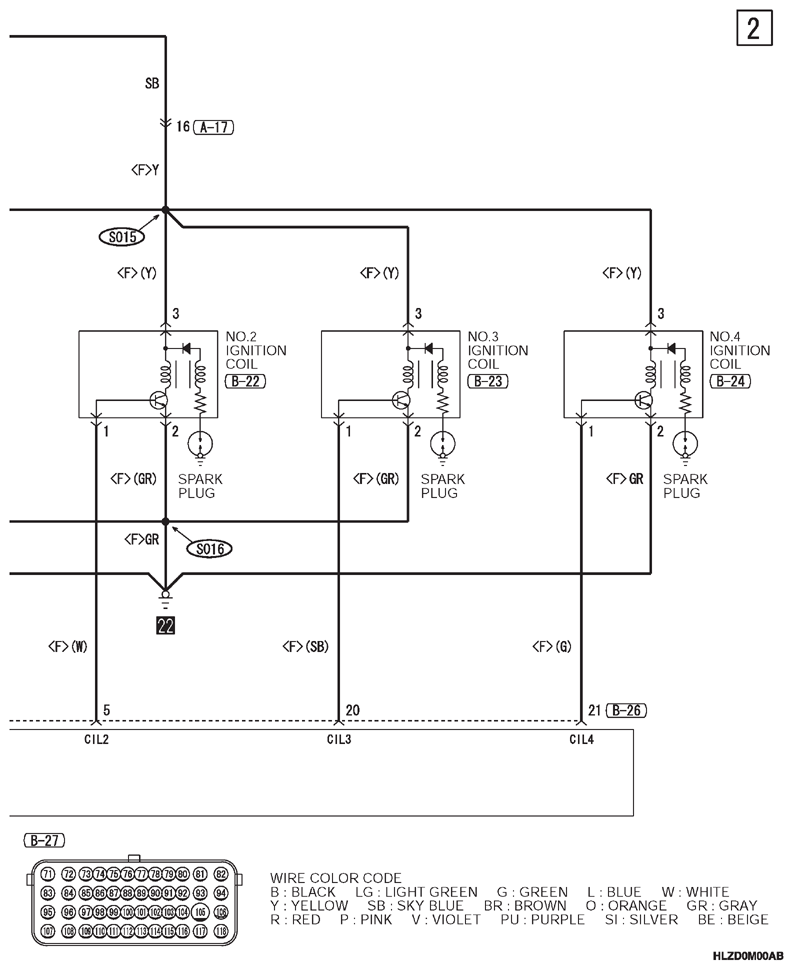

Ignition System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
