Power Windows

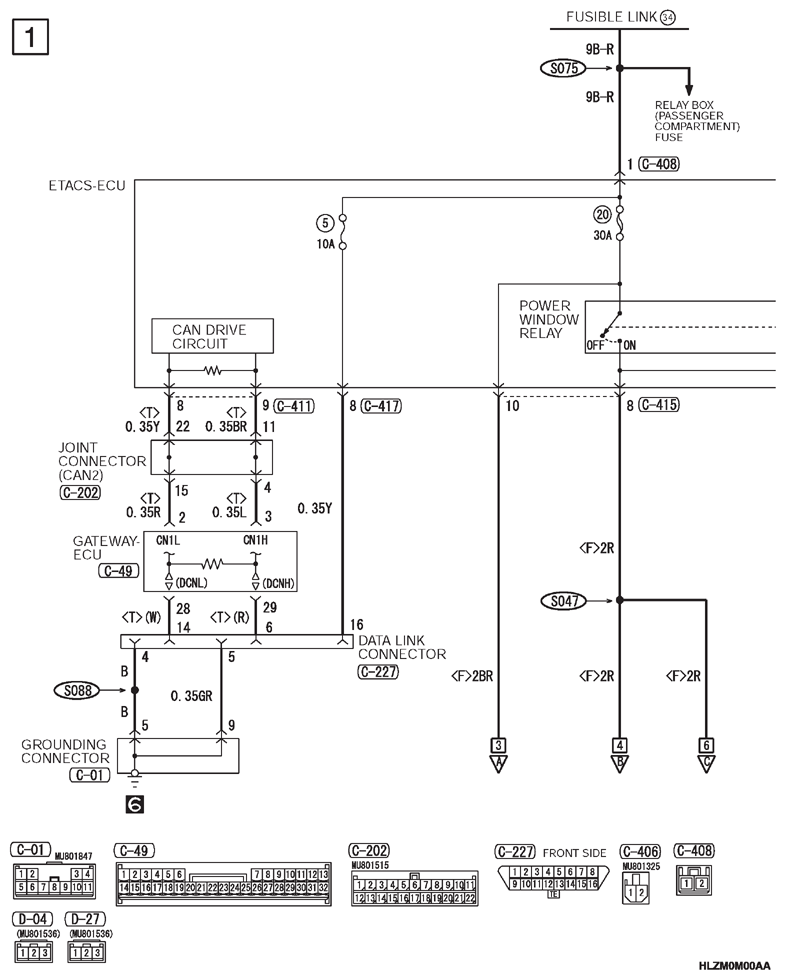

G13346218Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

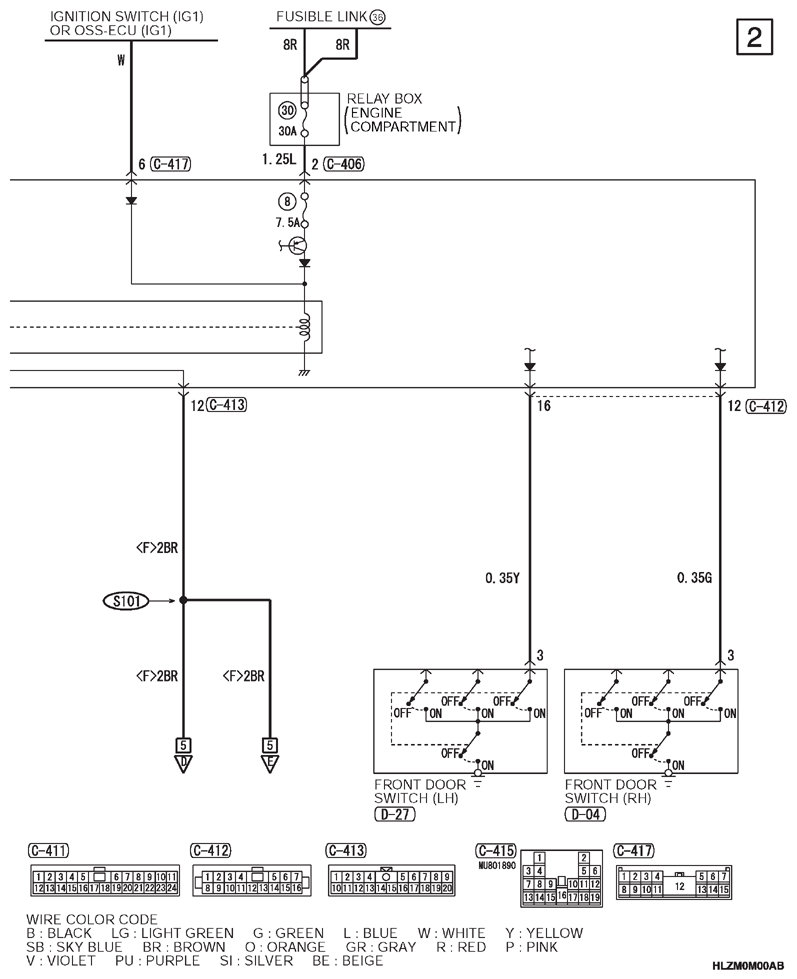

G13346219Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

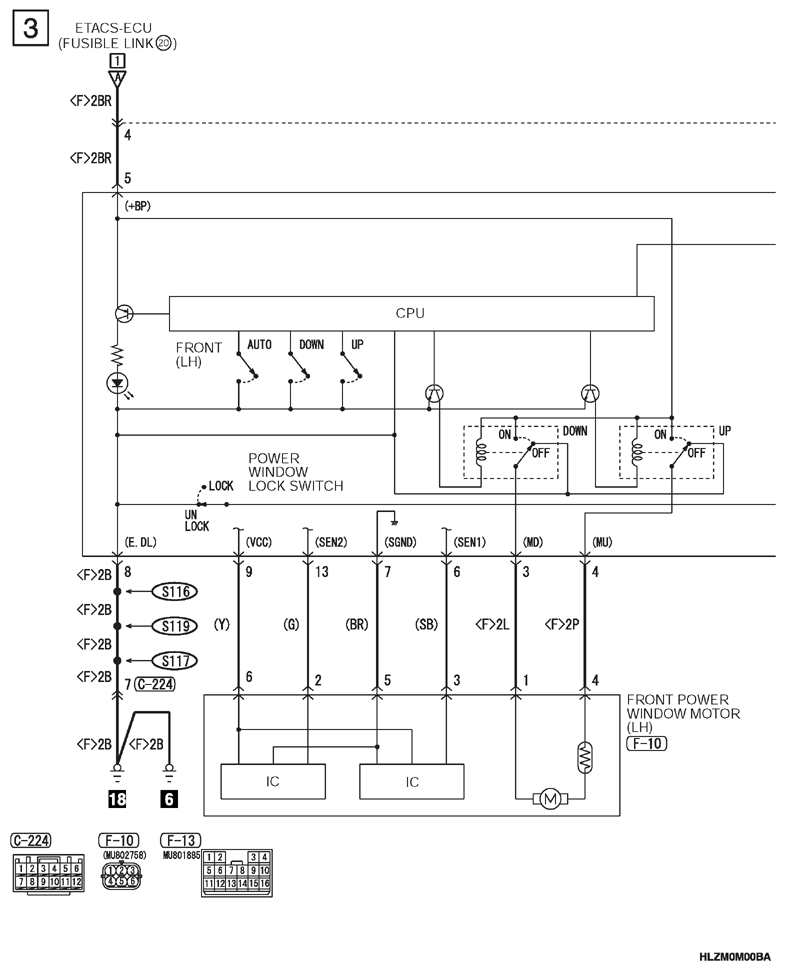

G13346220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

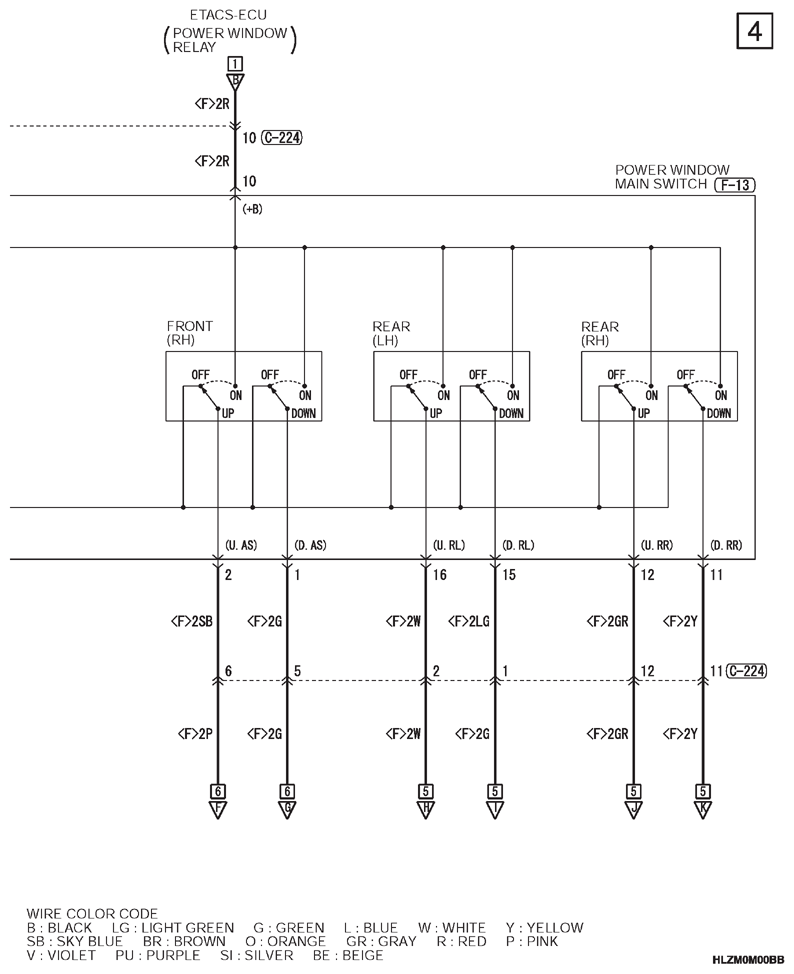

G13346221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

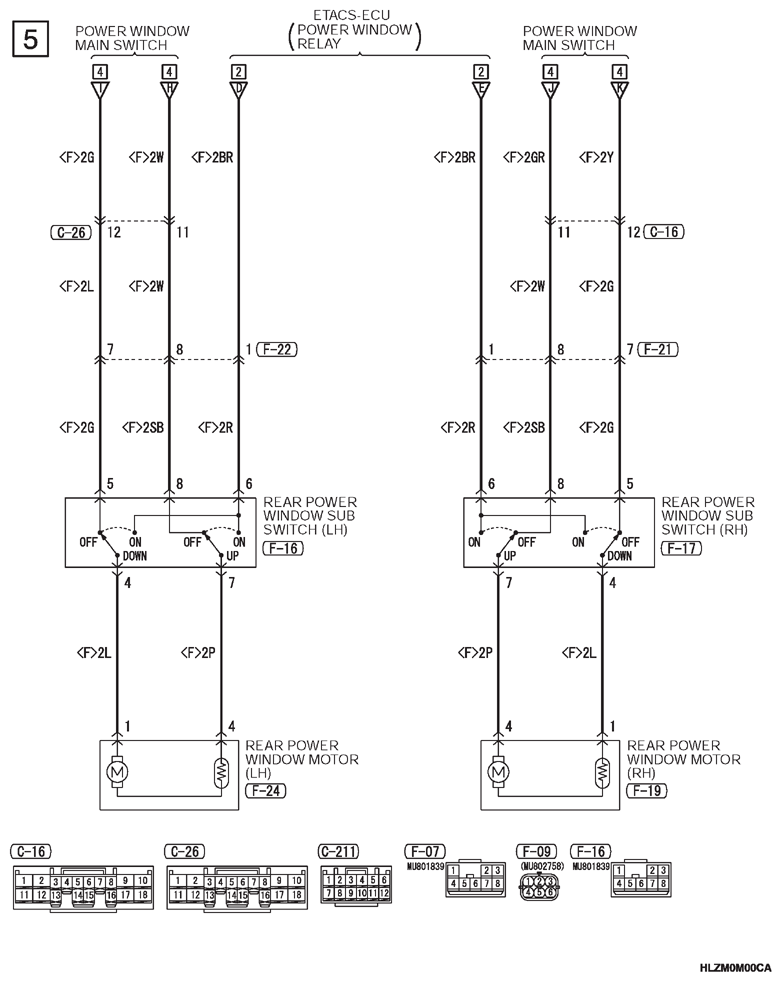

G13346222Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

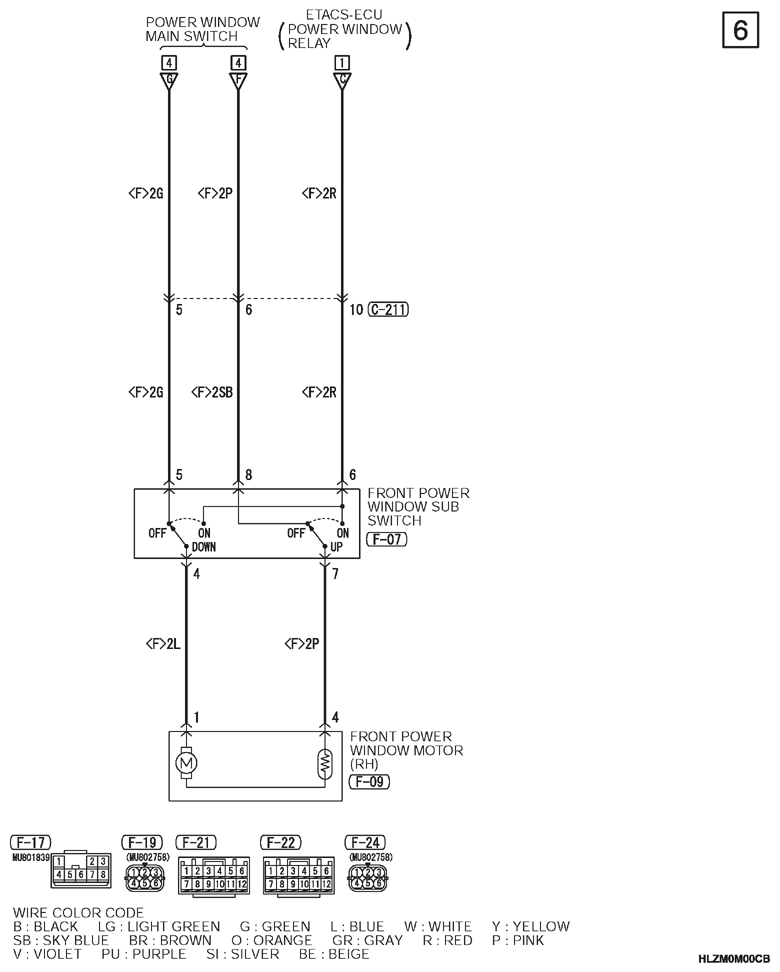

G13346223Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
