FixVault
Home
›
Mitsubishi
›
2021
›
RVR LE
›
Repair and Diagnosis
›
Engine Performance
›
Wiring Diagrams
›
Circuit Diagrams
›

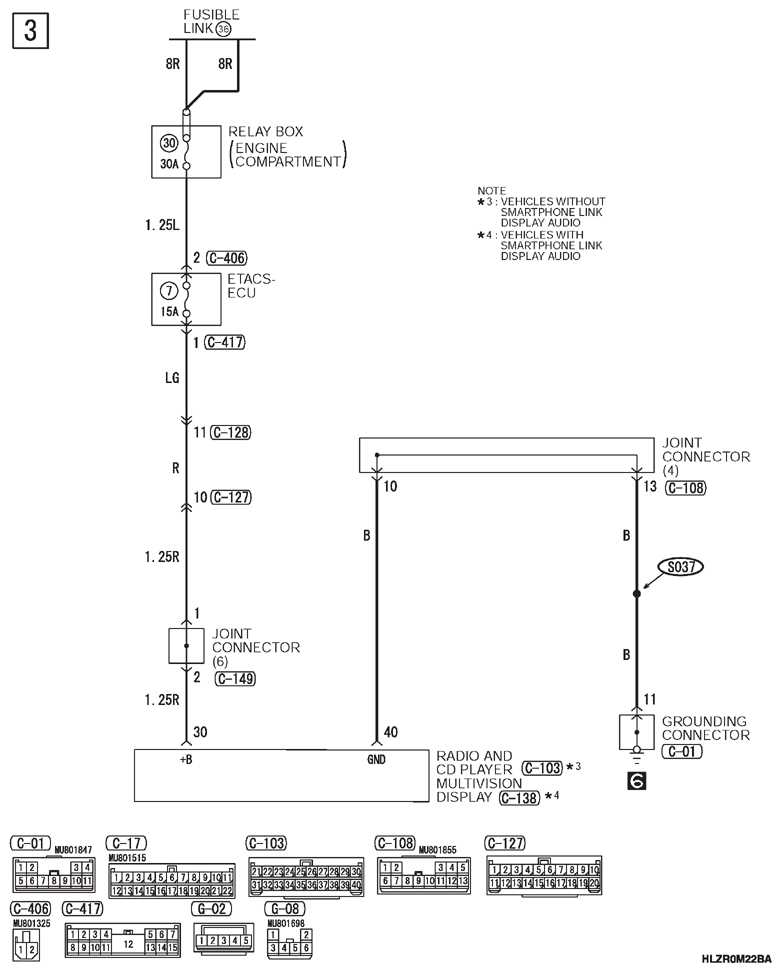

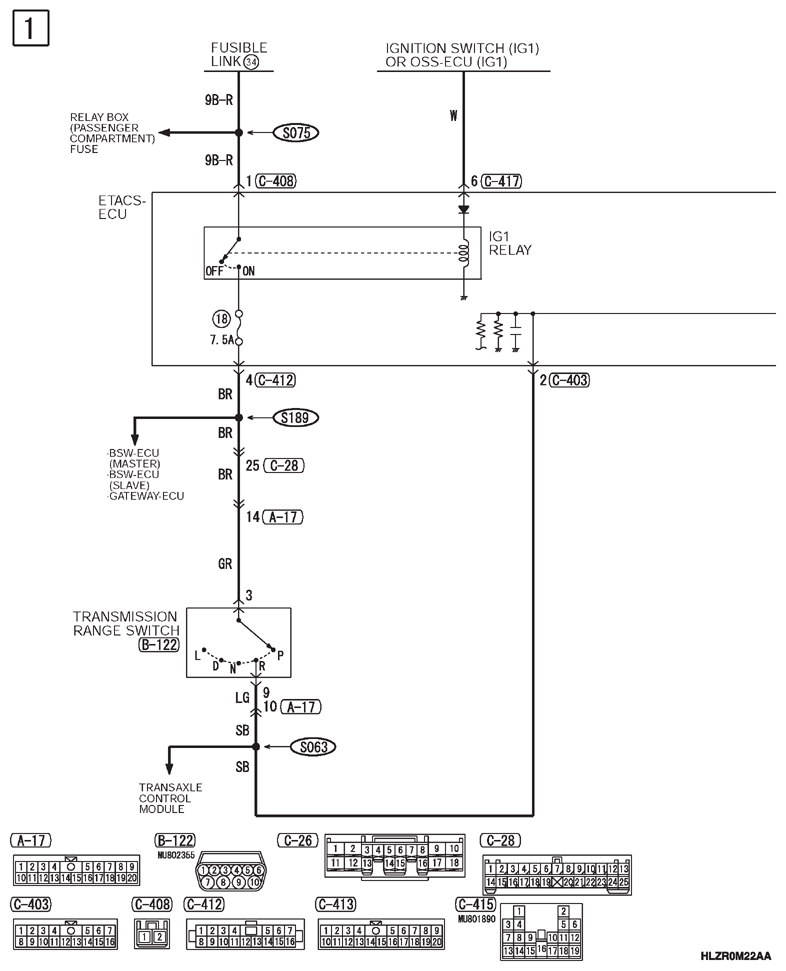

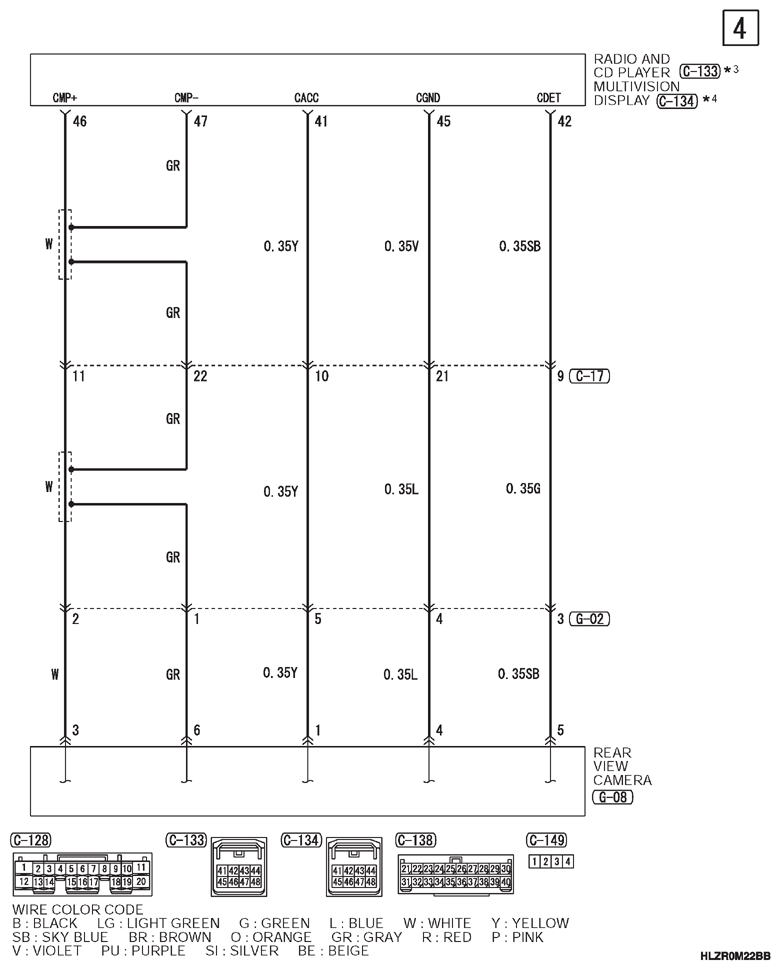

Rear View Camera
Rear View Camera
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
