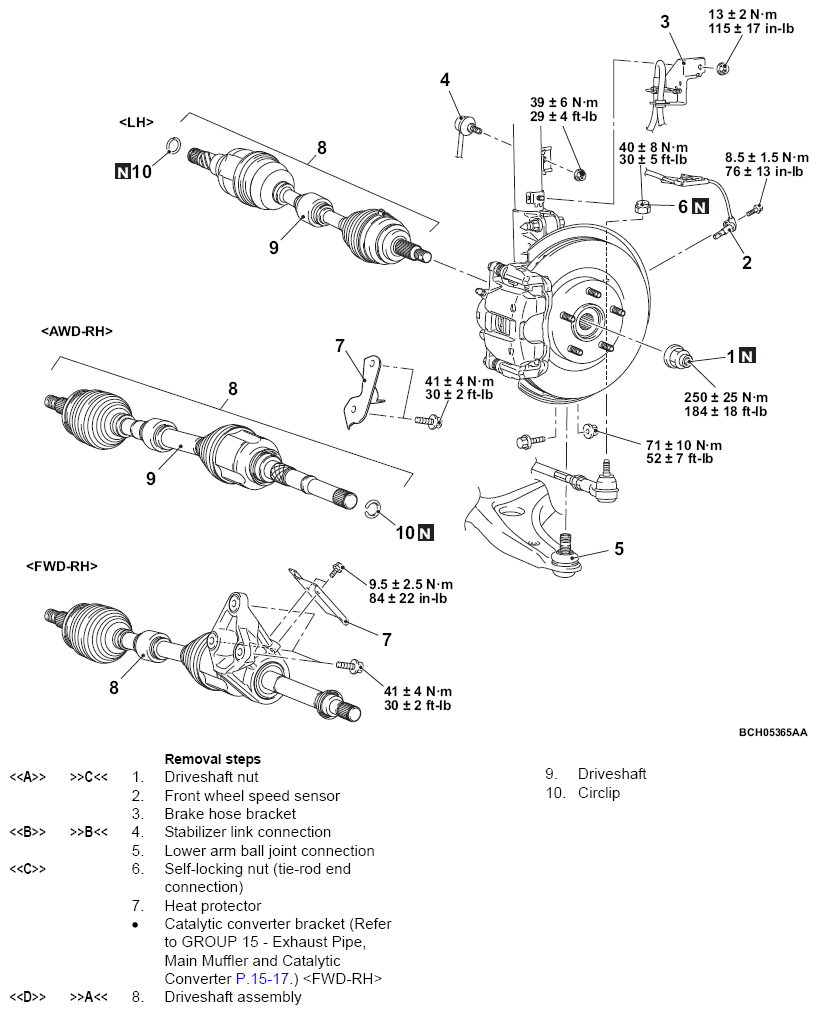

Removal And Installation: Notes
CAUTION:
- The wheel speed detection magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
- When removing and installing the driveshaft assembly, make sure that the wheel speed detection magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
Pre-removal operation
- Engine Room Under Cover Rear Removal (Refer to UNDER COVER .
- CVT fluid draining (Refer to CVT FLUID CHANGE .
Post-installation operation
- CVT fluid refilling (Refer to CVT FLUID CHANGE .
- Engine Room Under Cover Rear Installation (Refer to UNDER COVER .
- Using your fingers, press the ball joint dust cover to check for a crack or damage.
Required Special Tools:
- MB992700: Lock nut chisel
- MB990767: Front Hub and Flange Yoke Holder
- MB991897 or MB992011: Ball Joint Remover
- MB990242: Puller shaft
- MB990244: Puller bar
- MB990767: Front hub and flange yoke holder
- MB991354: Puller body
- MB991000: Spacer
- MB990998: Front hub remover and installer
