Removal And Installation: Notes

Pre-removal and Post-installation Operation

Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal and Installation (Refer to UNDER COVER . Engine Coolant Draining and Refilling (Refer to ENGINE COOLANT REPLACEMENT . Engine Oil Draining and Refilling (Refer to ENGINE OIL REPLACEMENT . Engine Cover Removal (Refer to ENGINE COVER . Charge air cooler Intake Air Hose A Removal and Installation (Refer to CHARGE AIR COOLER  ). Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER  ). Front Exhaust Pipe Removal and Installation (Refer to TURBOCHARGER ASSEMBLY INSPECTION  ). Strut Tower Bar Removal and Installation (Refer to STRUT TOWER BAR .

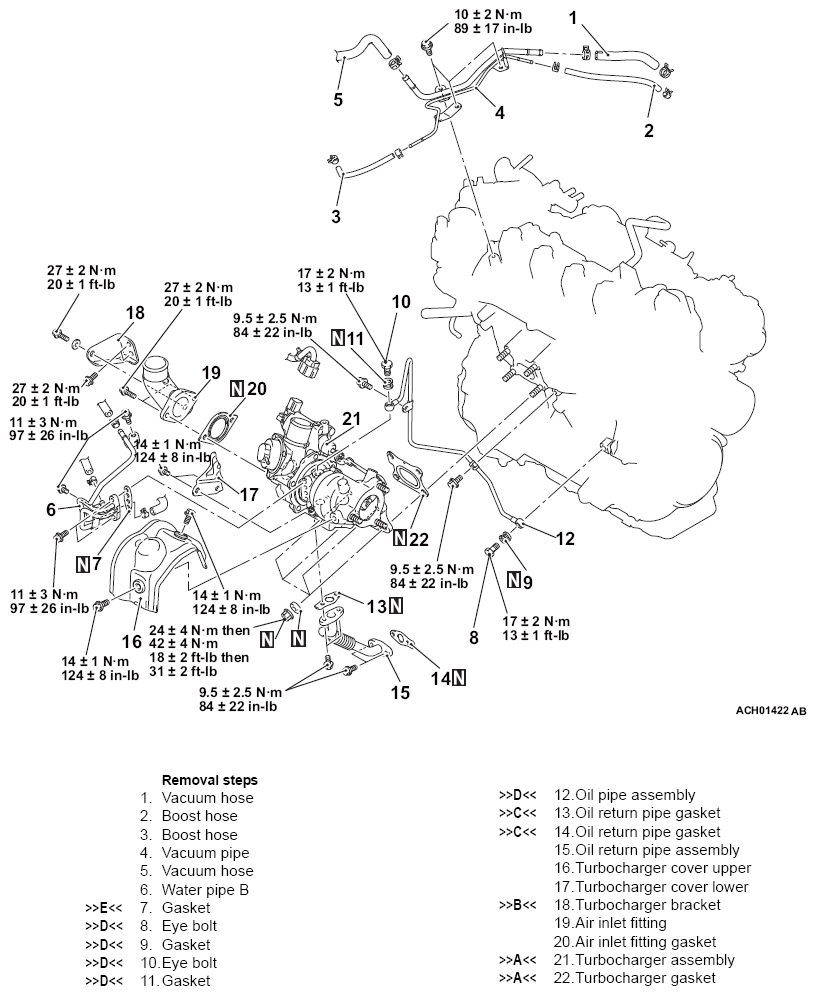

Fig 1: Removing/Installing Turbocharger Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
