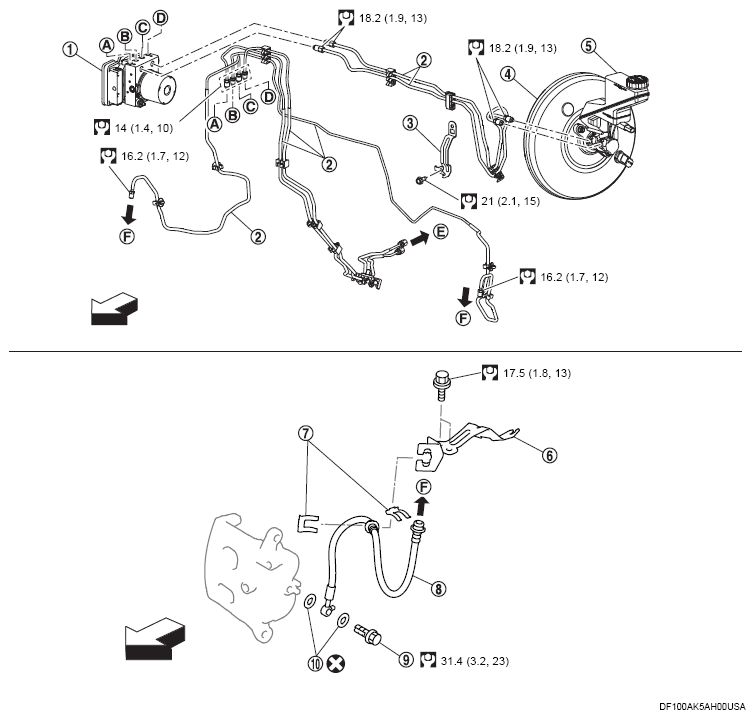

Exploded View
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| (1) | ABS actuator and electric unit (control unit) |
| (2) | Brake tube |
| (3) | Brake tube bracket |
| (4) | Brake booster |
| (5) | Master cylinder assembly |
| (6) | Bracket |
| (7) | Lock plate |
| (8) | Brake hose |
| (9) | Union bolt |
| (10) | Copper washer |
| (E) | To rear brake tube. Refer to EXPLODED VIEW . |
| (A), (B), (C), (D), (F): Indicates that the part is connected at points with same symbol in actual vehicle. | |
| : Vehicle front | |
| : N.m (kg-m, ft-lb) | |
| : N.m (kg-m, in-lb) | |
| : Always replace after every disassembly. | |
