Exploded View: Disassembly
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

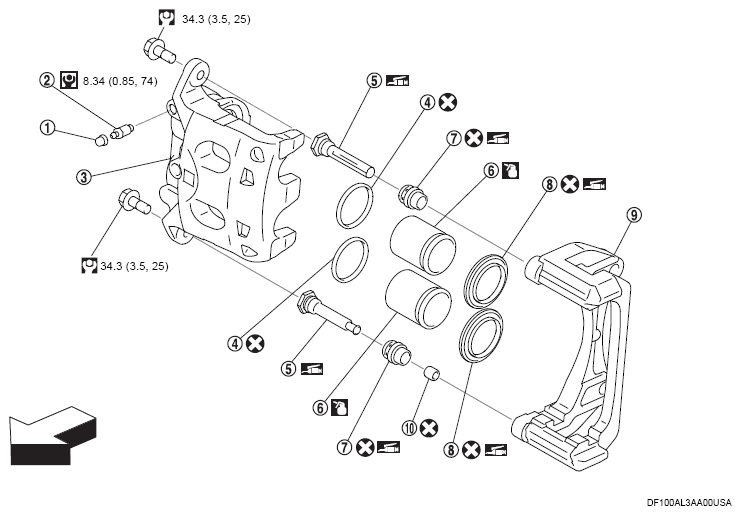

Fig 1: Disassembling/Assembling Brake Caliper Assembly Components Location With Torque Specification
| (1) | Cap |
| (2) | Bleeder valve |
| (3) | Cylinder body |
| (4) | Piston seal |
| (5) | Sliding pin |
| (6) | Piston |
| (7) | Sliding pin boot |
| (8) | Piston boot |
| (9) | Torque member |
| (10) | Bushing |
| : Vehicle front | |
| : N.m (kg-m, ft-lb) | |
| : N.m (kg-m, in-lb) | |
| : Apply brake fluid. | |
| : Apply rubber grease. | |
| : Always replace after every disassembly. |
