System Description
›
Description
›

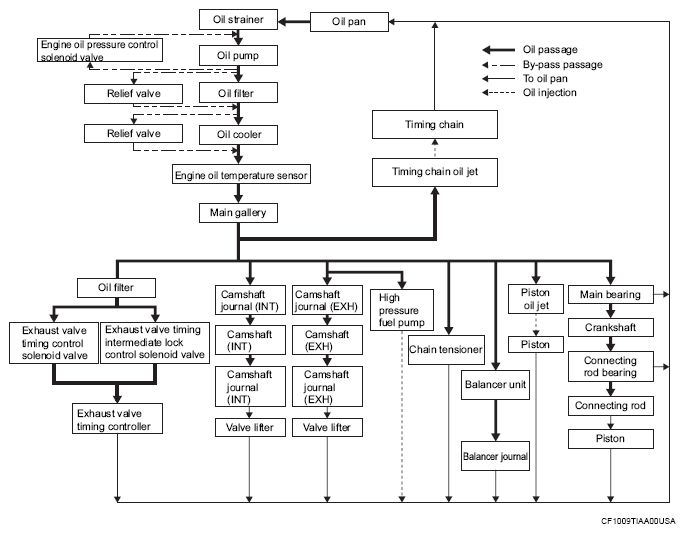

Engine Lubrication System Schematic
Engine Lubrication System Schematic
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
