Cruise Control On/Off Switch Check

  1. Turn on the power supply mode of the electric motor switch.

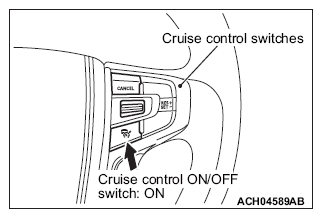

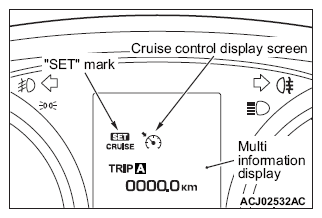

  2. Push the cruise control ON/OFF switch of the cruise control switches, and check that the cruise control display screen is displayed on the multi information display in the combination meter.
  3. Push the cruise control ON/OFF switch again, and check that the cruise control display screen goes out.
G14352629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G14352630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
